PHOENIX CONTACT PTSPL-6/1-2X2 2,1 R32 PTSPL-6/1-2X2 2,1 R32 1704836 PHOENIX CONTACT PCB terminal block for tin-plated stranded cables, e.g., type .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTSPL-6/1-2X2 2,1 R32 1704836 PHOENIX CONTACT PCB terminal block for tin-plated stranded cables, e.g., type ..

PTSPL-6/1-2X2 2,1 R32

1704836

PHOENIX CONTACT

250 Pcs.

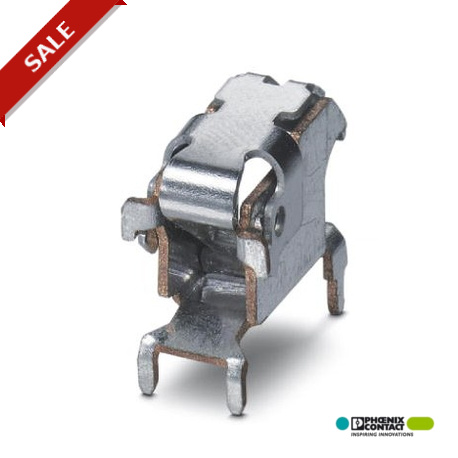

PCB terminal block for tin-plated stranded cables, e.g., type PV 1-F, nominal current: 41 A, 1-pos., connection method: spring-cage connection, mounting: THT/THR, user information on through hole reflow technology can be found at: combicon.com Printed lug for tinned flexible cables, e.g. PV 1-F, rated current: 41 A, number of poles: 1, connection technology: spring connection, mounting: THT/THR; Further user information on Through Hole Reflow technology can be found at: combicon.com

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Dimensions

Length of the solder pin2.1 mm
Pin dimensions0,6 x 1
Hole diameter1.3 mm

General

Nominal current IN41 A
Nominal cross section6 mm²
Solder pin surfaceSn
Stripping length15 mm

Connection data

Conductor cross section flexible min.2.5 mm²
Conductor cross section flexible max.6 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.2.5 mm² Min.
Conductor cross section flexible, with ferrule without plastic sleeve max.6 mm² max.

ETIM for 1704836 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 1.9 mm
Number of electrical connections (EF008252) 1
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 0 mm
Rated current In (EF008250) 41 A
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 2.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 2.1 mm
Housing colour (EF000136) Other
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Blister girdle (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
