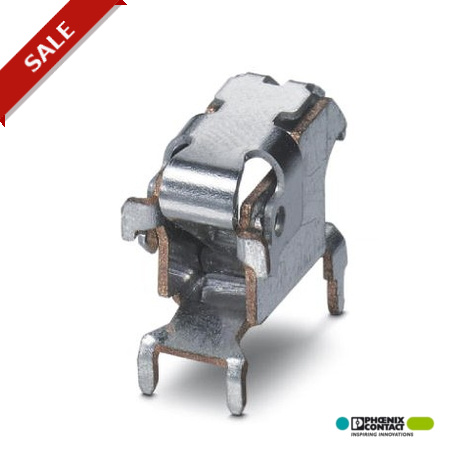

PTSPLO-6/1-2X2 2,9 R32 1705085 PHOENIX CONTACT PCB terminal block for tin-plated stranded cables, e.g., type..

PTSPLO-6/1-2X2 2,9 R32

1705085

PHOENIX CONTACT

220 Pcs.

PCB terminal block for tin-plated stranded cables, e.g., type PV 1-F, nominal current: 41 A, 1-pos., connection method: spring-cage connection, mounting: THT/THR, user information on through hole reflow technology can be found at: combicon.com Printed lug for tinned flexible cables, e.g. PV 1-F, rated current: 41 A, number of poles: 1, connection technology: spring connection, mounting: THT/THR; Further user information on Through Hole Reflow technology can be found at: combicon.com

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Dimensions

Pin dimensions0,6 x 1
Hole diameter1.3 mm

General

Nominal current IN41 A
Nominal cross section6 mm²
Solder pin surfaceSn
Stripping length15 mm

Connection data

Conductor cross section flexible min.2.5 mm²
Conductor cross section flexible max.6 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.2.5 mm² Min.
Conductor cross section flexible, with ferrule without plastic sleeve max.6 mm² max.

ETIM for 1705085 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 12.9 mm
Number of electrical connections (EF008252) 1
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 0 mm
Rated current In (EF008250) 41 A
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Spring clamp connection
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 2.5 mm²
Connection type PCB (EF006822) Soldering connection
Material connection surface (EF006826) Tin
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 2.9 mm
Housing colour (EF000136) Other
Operating temperature (EF002393) -40 °C
Type of PCB fastening (EF008226) Connecting contact
Type of fastening (EF002442) Solder
Type of banding (EF007011) Blister girdle (for SMD)
