View larger
Images are for illustrative purposes only. Please refer to data sheet for details

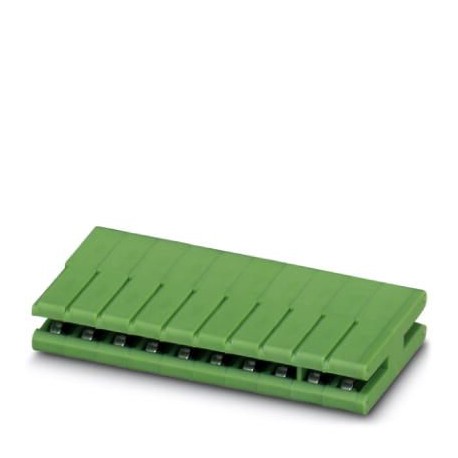

ZEC 1,5/ 2-LPV-5,0 C2 1898266 PHOENIX CONTACT PCB connector
ZEC 1,5/ 2-LPV-5,0 C2
1898266
PHOENIX CONTACT
50 Pcs.
PCB connector
Connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 10 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: ZEC 1.5/.. -LPV, pitch: 5 mm, mounting: Direct plug-in connection technology, driver/printed circuit board connection direction: 0 °, number of solder pins per potential: 2, plug-in system: ZEC, lock: without, fixing type: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1898266 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 367 (C-1-2013) |
| GTIN | 4017918166977 |
| Weight per Piece (excluding packing) | 1.910 g |
| Custom tariff number | 85366930 |
| Country of origin | GR (Greece) |
General
| Range of articles | ZEC 1,5/..-LPV |
|---|---|
| Insulating material group | I |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 630 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 10 A |
| Nominal voltage UN | 250 V |
| Nominal cross section | 1.5 mm² |
| Maximum load current | 10 A |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 2 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| CUL | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
