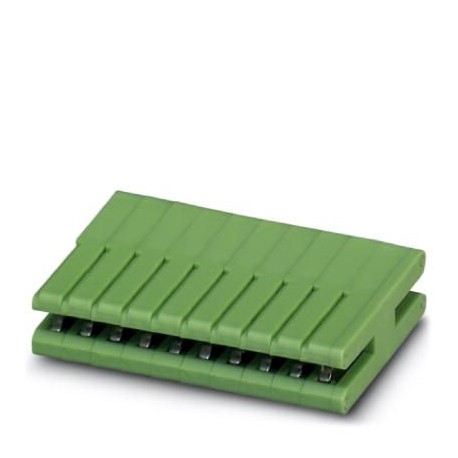

PHOENIX CONTACT ZEC 1,0/12-LPV-3,5 C1 ZEC 1,0/12-LPV-3,5 C1 1915754 PHOENIX CONTACT PCB connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZEC 1,0/12-LPV-3,5 C1 1915754 PHOENIX CONTACT PCB connector

ZEC 1,0/12-LPV-3,5 C1

1915754

PHOENIX CONTACT

50 Pcs.

PCB connector Connector for printed circuit board, nominal section: 1 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 200 V, contact surface: Tin, contact type: Female, number of potentials: 12, number of rows: 1, number of poles: 12, number of connections: 12, family of articles: ZEC 1.0/.. -LPV, pitch: 3.5 mm, mounting: Direct plug-in connection technology, driver/printed circuit board connection direction: 0 °, number of solder pins per potential: 2, plug-in system: ZEC, lock: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1915754
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 365 (C-1-2013)
GTIN4017918181420
Weight per Piece (excluding packing)7.650 g
Custom tariff number85366930
Country of originBG (Bulgaria)

Dimensions

Length22.9 mm
Height7 mm
Width43.4 mm
Pitch3.5 mm
Dimension a42 mm

General

Range of articlesZEC 1,0/..-LPV
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/2)200 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Nominal voltage UN160 V
Nominal cross section1 mm²
Maximum load current8 A
Insulating materialPA
Flammability rating according to UL 94V0
Number of positions12

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
