View larger
Images are for illustrative purposes only. Please refer to data sheet for details

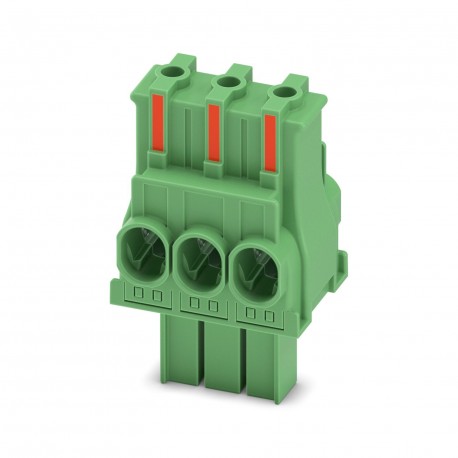

PC 6/ 3-ST-BUS-7,62 1044738 PHOENIX CONTACT Connector for printed circuit board, nominal current: 32 A, numb..
PC 6/ 3-ST-BUS-7,62
1044738
PHOENIX CONTACT
20 Pcs.
Connector for printed circuit board, nominal current: 32 A, number of poles: 3, pitch: 7.62 mm, connection type: displacement Connection, color: green, surface contacts: Tin
Connector for printed circuit board, nominal section: 16 mm², color: green, nominal current: 32 A, nominal voltage (III/2): 1000 V, contact surface: Tin, contact type: Female, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, family of items: PC 6/.. -ST-BUS, pitch: 7.62 mm, connection type: Offset connection, screw clamping method: T15 Torx®, driver/printed circuit board connection direction: 0 °, clamping hook: - without clamping hook, plug-in system: COMBICON PC 6, locking: without, fixing type: without, packaging type: packed in box
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Item Properties
| Product Type | Printed Circuit Board Connector |
| Product Family | PC 6/.. -ST-BUS |
| Product Line | COMBICON Connectors L |
| Number of poles | 3 |
| Step | 7.62 mm |
| Number of connections | 3 |
| Number of rows | 1 |
| Number of potentials | 3 |
| Clamping flange | without |
| Data Maintenance Status | |
| Article Review | 02 |
Electrical Properties
| Nominal Current IN | 32 A |
| Nominal voltage UN | 1000 V |
| Contact resistance | 0.7 mΩ |
| Sizing voltage (III/3) | 1000 V |
| Dimensioning transient voltage (III/3) | 8 kV |
| Dimensioning voltage (III/2) | 1000 V |
| Dimensioning Transient Voltage (III/2) | 8 kV |
| Nominal voltage (II/2) | 1000 V |
| Dimensioning transient voltage (II/2) | 6 kV |
Connection data
| Connection technology | |
| Connector System | COMBICON PC 6 |
| Nominal Section | 16 mm² |
| Contact Connection Type | Female |
| Blockade | |
| Locking system | without |
| Clamping flange | without |
| Connecting Conductors | |
| Connection type | Scroll connection |
| Connection Direction Driver/PCB | 0 ° |
| Flexible conductor section | 16 mm² (H07V-K/maximum outer diameter 8.1 mm) |
| Drive shape: screw head | Torx® (T15) |
| Tightening torque | 3 nm |
| Connecting Conductors | |
| Connection type | Scroll connection |
| Connection Direction Driver/PCB | 0 ° |
| Drive shape: screw head | Torx® (T15) |
| Tightening torque | 3 nm |
Material Data
| Material data - contact | |
| Observation | WEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface Characteristics | Malleable cast iron tinning |
| Metal surface of the terminal point (top layer) | Tin (4 - 8 μm Sn) |
| Metal surface contact area (top layer) | Tin (4 - 8 μm Sn) |
| Material data - housing | |
| Color (Housing) | Green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Flammability number of GWFI incandescent filaments according to EN 60695-2-12 | 850 |
| Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13 | 775 |
| Ball hardness test temperature according to EN 60695-10-2 | 125 °C |
Dimensions
| Dimension Scheme |  |
| Step | 7.62 mm |
| Width [w] | 34.2 mm |
| Height [h] | 58 mm |
| Length [l] | 28.75 mm |
Notes
| Observation regarding the operation | According to DIN EN 61984, COMBICON connectors are connectors without switching power (COC). In the event of use as prescribed, they must not be plugged in or unplugged under voltage or under load. |
Mechanical testing
| Connecting Conductors | |
| Test Specification | DIN EN 60998-2-3 (VDE 0613-2-3):2005-03 |
| Result | Approved Test |
| Checking for damage to conductors and loosening | |
| Test Specification | DIN EN 60998-2-3 (VDE 0613-2-3):2005-03 |
| Result | Approved Test |
| Repeated connection and disconnection | |
| Test Specification | DIN EN 60998-2-3 (VDE 0613-2-3):2005-03 |
| Result | Approved Test |
| Tensile Test | |
| Test Specification | DIN EN 60998-2-3 (VDE 0613-2-3):2005-03 |
| Conductor Section/Conductor Type/Tensile Force Nominal Value/Actual Value | 16 mm² / flexible / > 100 N |
| Forces when plugging in and unplugging | |
| Test Specification | DIN EN 60512-13-2:2006-11 |
| Result | Approved Test |
| Number of cycles | 25 |
| Plug-in force approx. | 13 N |
| Power when unplugging by pole approx. | 16 N |
| Torque check | |
| Test Specification | DIN EN 60998-2-3 (VDE 0613-2-3):2005-03 |
| Resistance of the signs | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Approved Test |
| Polarization & Coding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Approved Test |
| Eye Exam | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Approved Test |
| Dimensional Examination | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Approved Test |
Environmental and life-life conditions
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 50 m/s² (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test Directions | X, Y, and Z axes |
| Durability Test | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Bearable shock voltage at sea level | 9.8 kV |
| Contact Resistance R1 | 0.7 mΩ |
| Contact Resistance R2 | 0.7 mΩ |
| Plug Cycles | 25 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Climate Essay | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Corrosion fatigue | 0.2 dm3UNDER2in 300 dm3/40 °C/1 cycle |
| Thermal stress | 100 °C/168 h |
| Bearable AC voltage | 4.26 kV |
| Essay filam. incandescent | |
| Test Specification | DIN EN 60998-1 (VDE 0613-1):2005-03 |
| Temperature | 850 °C |
| Performance Time | 5 s |
| Essay filam. incandescent | |
| Test Specification | DIN EN 60998-1 (VDE 0613-1):2005-03 |
| Temperature | 650 °C |
| Performance Time | 5 s |
| Environmental conditions | |
| Ambient Temperature (Service) | -40 °C ... 100 °C (depending on the rating curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5°C ... 40°C (depending on conductor insulation) |
Electrical Testing
| Thermal Test Test Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 3 |
| Short-term permissible current | |
| Test Specification | DIN EN 60998-2-3 (VDE 0613-2-3):2005-03 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Temperature Cycles | |
| Test Specification | DIN EN 60998-2-3 (VDE 0613-2-3):2005-03 |
| Result | Approved Test |
| Creepage Lines & Air Isolation Distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Sizing Insulation Voltage (III/3) | 1000 V |
| Nominal transient voltage (III/3) | 8 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 8 mm |
| Minimum creepage line value (III/3) | 12.5 mm |
| Sizing Insulation Voltage (III/2) | 1000 V |
| Nominal transient voltage (III/2) | 8 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 8 mm |
| Minimum creepage line value (III/2) | 8 mm |
| Sizing Insulation Voltage (II/2) | 1000 V |
| Nominal transient voltage (II/2) | 6 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 5.5 mm |
| Minimum creepage line value (II/2) | 5.5 mm |
Packaging Information
| Type of packaging | Boxed Packaging |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 3 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 7.62 mm |
| Modular spacing connections (EF006827) | 7.62 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 32 A |
| Rated voltage (EF000228) | 1000 V |
| Rated surge voltage (EF002993) | 6 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 16 mm² |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Tin |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
