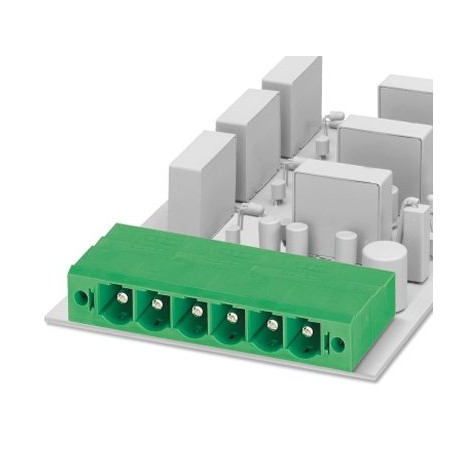

PHOENIX CONTACT PC 6-16/ 8-GF-10,16 PC 6-16/ 8-GF-10,16 1913772 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PC 6-16/ 8-GF-10,16 1913772 PHOENIX CONTACT Feed-through header

PC 6-16/ 8-GF-10,16

1913772

PHOENIX CONTACT

50 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 6 mm², color: green, nominal current: 76 A (41 A in combination with PC 6 connector), nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Male, number of potentials: 8, number of rows: 1, number of poles: 8, number of connections: 8, family of articles: PC 6-16/.. -GF, pitch: 10.16 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 16, Plug-in face orientation: Standard, locking: Screw lock, fixing type: Air clamping (thread), packaging type: boxed packaging, The nominal current of 76 A is valid in combination with connectors from the PC 16 family. In combination with PC 6 connectors, 41 A (50 A according to UL) is achieved.

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1913772
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 195 (CC-2002)
GTIN4017918179250
Weight per Piece (excluding packing)36.410 g
Custom tariff number85366930
Country of originPL (Poland)

Dimensions

Length [ l ]32 mm
Width99.04 mm
Pitch10.16 mm
Dimension a71.12 mm
Width [ w ]99.04 mm
Height [ h ]17.71 mm
Height13.71 mm
Length of the solder pin4 mm
Length32 mm

General

Range of articlesPC 6-16/..-GF
Rated surge voltage (III/3)6 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)8 kV
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Nominal current IN41 A
Colorgreen
Number of positions8

Standards and Regulations

Connection in acc. with standardCUL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1913772 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 8
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 10.16 mm
Modular spacing connections (EF006827) 10.16 mm
Rated current In (EF008250) 76 A
Rated voltage (EF000228) 1000 V
Rated surge voltage (EF002993) 8 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Silver
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.7 mm
Length pin (EF006825) 4 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
