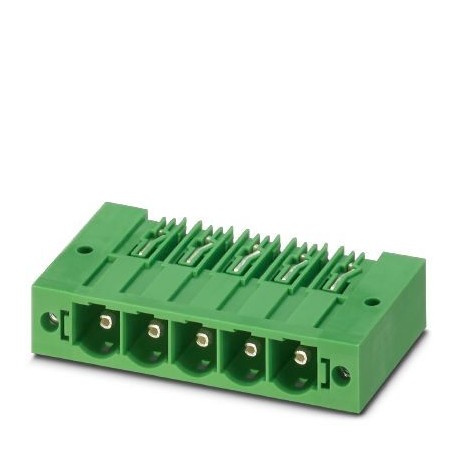

PC 6-16/ 2-G1F-10,16 RD 1715920 PHOENIX CONTACT Housing base printed circuit board, number of poles: 2, pitc..
PC 6-16/ 2-G1F-10,16 RD
1715920
PHOENIX CONTACT
50 Pcs.
Housing base printed circuit board, number of poles: 2, pitch: 10,16 mm, color: red, surface of contacts: silver, assembly: wave Soldering
Printed circuit board base housing, nominal section: 16 mm², color: red, nominal current: 76 A (41 A in combination with PC 6 connector), nominal voltage (III/2): 1000 V, contact surface: silver, contact type: Male, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, article family: PC 6-16/.. -G1F, pitch: 10.16 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 4 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 16, Plug-in face orientation: Standard, locking: Screw lock, fixing type: Air clamping (thread), packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Basic printed circuit board assembly, nominal current: 76 A, test voltage (III/2): 1000 V, number of poles: 2, pitch: 10,16 mm, color: black, contact surface: Silver, assembly: Soldering wave
Business
| The code of the application | One million seven hundred fifteen thousand nine hundred twenty |
|---|---|
| The amount of the package (C#) | 50 Pcs |
| The minimum quantity of the order | 50 Pcs |
| Note | The production is linked to the application (no removal) |
| GTIN | Four trillion fifty five billion six hundred twenty six million four hundred sixty three thousand four hundred sixty nine |
| Weight per piece (excluding packing) | 13,643 GRM |
| The number of corporate and commercial | Eighty five million three hundred sixty six thousand nine hundred thirty |
| The country-of-origin | PL (Poland). |
Measures
| Dimensions [ l ] | 34 mm |
|---|---|
| The width | 38,08 mm |
| The measure of the step | 10,16 mm |
| The extent of the | 10,16 mm |
| A width of [ w], | 38,08 mm |
| Time [ h ] | 17.4 mm |
| Time | Of 13.4 mm |
| The length of the pin to solder to | 4 mm |
| Measurements of the pin | 1 x 1.2 mm |
| The distance from the pin | 10,16 mm |
| Long | 34 mm |
The general
| The family | PC 6-16/..-G1F |
|---|---|
| Color | red |
| The number of poles in the | Two |
Environmental And Product Compliance
| As China RoHS | The period for the for their intended uses: unlimited, = EFUP and |
|---|---|
| No hazardous substances above the limit values for the |
Ratings
eCl@ss
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
|---|---|
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand four hundred two |
| the eCl@ss 9.0 | Twenty seven million four hundred forty thousand four hundred two |
ETIM
| ETIM 5.0 | EC002637 |
|---|---|
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 2 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 10.16 mm |
| Modular spacing connections (EF006827) | 10.16 mm |
| Rated current In (EF008250) | 76 A |
| Rated voltage (EF000228) | 1000 V |
| Rated surge voltage (EF002993) | 8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Silver |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.7 mm |
| Length pin (EF006825) | 4 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Red |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
