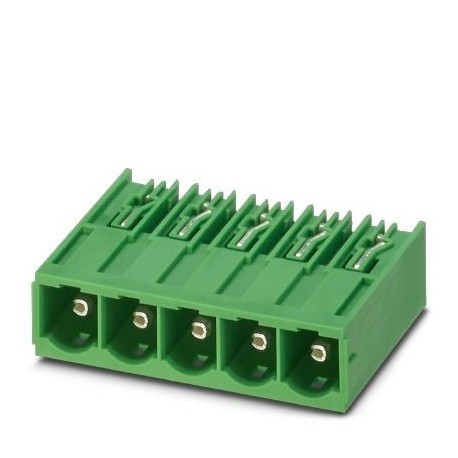

PC 6-16/ 2-G1-10,16 LABEL 1701587 PHOENIX CONTACT Feed-through header
PC 6-16/ 2-G1-10,16 LABEL
1701587
PHOENIX CONTACT
50 Pcs.
Feed-through header
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length [ l ] | 34 mm |
|---|---|
| Width | 23.36 mm |
| Pitch | 10.16 mm |
| Dimension a | 10.16 mm |
| Width [ w ] | 23.36 mm |
| Height [ h ] | 17.5 mm |
| Height | 13.4 mm |
| Length of the solder pin | 4.1 mm |
| Pin dimensions | 1 x 1.2 mm |
| Length | 34 mm |
General
| Range of articles | PC 6-16/..-G1 |
|---|---|
| Rated voltage (III/3) | 1000 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 76 A |
| Color | green |
| Number of positions | 2 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
