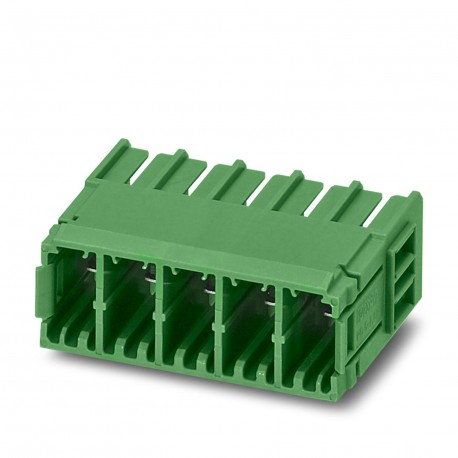

PHOENIX CONTACT PC 5/ 3-G-7,62 BK PC 5/ 3-G-7,62 BK 1757413 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PC 5/ 3-G-7,62 BK 1757413 PHOENIX CONTACT Printed-circuit board connector

PC 5/ 3-G-7,62 BK

1757413

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector PCB base housing, nominal cross-section: 6 mm², colour: black, nominal current: 41 A, nominal voltage (III/2): 630 V, surface contacts: Tin, contact type: Male, number of rows: 1, number of poles: 3, article family: PC 5/.. -G, pitch: 7.62 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 5 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 5, Plug-in Face Orientation: Standard, Locking: Without, Attachment Type: Sin, Packing Type: Boxed Packaging PCB header, nominal cross-section: 6 mm2, colour: black, nominal current: 41 A, reference voltage (III/2): 630 V, contact area: Sn, contact type: Male, number of rows: 1, number of poles: 3, item range: PC 5/.. -G, pitch: 7.62 mm, mounting: Wave welding, spindle plane: Linear pinout, spindle length [P]: 5 mm, number of pins per potential: 3, Plug-in system: COMBICON PC 5, Orientation of the plug-in pattern: Standard, Locking: without, Fastening type: without, Packaging type: packed in a carton

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1757413
Packing unit50 pc
Minimum order quantity50 pc
GTIN4046356342292
Weight per Piece (excluding packing)6.660 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]29.25 mm
Width25.66 mm
Pitch7.62 mm
Dimension a15.24 mm
Width [ w ]25.66 mm
Height [ h ]19.29 mm
Height14.29 mm
Length of the solder pin5 mm
Length29.25 mm

General

Range of articlesPC 5/..-G
Rated voltage (III/3)630 V
Connection in acc. with standardEN-VDE
Nominal current IN41 A
Colorblack
Number of positions3

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
