View larger
Images are for illustrative purposes only. Please refer to data sheet for details

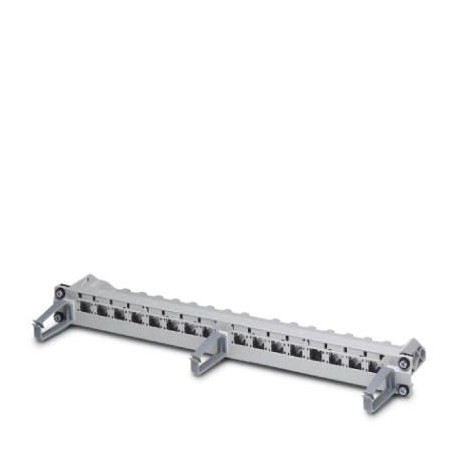

VS-PP-19-1HE-16-F 1652994 PHOENIX CONTACT Marshalling panel
VS-PP-19-1HE-16-F
1652994
PHOENIX CONTACT
1 Pcs.
Marshalling panel
Patchpanel, 19" mount, IP20, with 16 mounting ports for Freenet contact inserts
Automation > Accessories/spare parts for firewall appliances
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1652994 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 395 (C-2-2017) |
| GTIN | 4017918969967 |
| Weight per Piece (excluding packing) | 582.700 g |
| Custom tariff number | 85381000 |
| Country of origin | PL (Poland) |
Mechanical characteristics
| Number of slots | 16 |
|---|---|
| Connection method | Screw connection (in connection with the base element) |
| Color | light grey RAL 7035 |
| Mounting type | 19" rack |
| Degree of protection | IP20 |
| Type | 1 HE |
| Size of housing | 1 |
| No. of cable outlets | 16 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PC-GF |
| Material | Plastic |
| Height | 43.2 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.019170100eCl@ss 7.019170112eCl@ss 8.019170112eCl@ss 9.019170112
| Feature Name | Feature Value |
|---|---|
| Number of buses/couplings (EF004395) | 1 |
| Suitable for number of connectors (EF001579) | 1 |
| Type of connector (EF002935) | Other |
| Screened (EF000881) | No |
| Category (EF001619) | Other |
| Number of height units (EF003561) | 2 |
| Height (EF000040) | 43.2 mm |
| Width (EF000008) | 482.2 mm |
