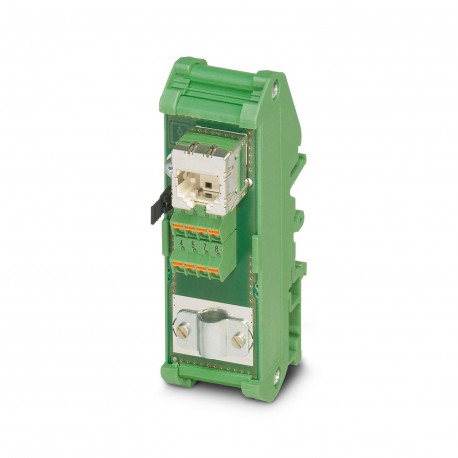

PHOENIX CONTACT FL-PP-RJ45-SCC FL-PP-RJ45-SCC 2901642 PHOENIX CONTACT Patch panel, one RJ45 socket to 8 spring-cage connection terminal blo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FL-PP-RJ45-SCC 2901642 PHOENIX CONTACT Patch panel, one RJ45 socket to 8 spring-cage connection terminal blo..

FL-PP-RJ45-SCC

2901642

PHOENIX CONTACT

10 Pcs.

Patch panel, one RJ45 socket to 8 spring-cage connection terminal blocks (1:1 assignment), CAT5e, 10/100/1000 Mbps, DIN rail mounting, IP20, option of shield contacting on DIN rail via jumpers Patch panel, one RJ45 female connector in 8 spring-force connection terminals (1:1 arrangement), CAT5e, 10/100/1000 MBit/s, DIN rail adapter, IP20, DIN rail protection contact via jumper

Automation > Patch panel copper (twisted pair)
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Note on application
Note on applicationOnly for industrial use
Utilization restriction
CCCex noteUse in potentially explosive areas is not permitted in China.
Product properties
Product typePatch panel
MTBF6702 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
2962 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day))
Data management status
Article revision09
Connection data
Connection methodSpring-cage connection
Interfaces
Data: Ethernet interface, 10/100/1000Base-T(X) in accordance with IEEE 802.3
Serial transmission speed10/100/1000 Mbps
Connection methodSpring-cage connection
No. of channels1
Pin assignment1:1
Transmission length100 m (including patch cables)
Single conductor/terminal point, rigid0.2 mm² ... 1.5 mm²
Single-wire/terminal point, flexible0.2 mm² ... 1 mm²
Single-wire/terminal point, rigid AWG max.16
Single-wire/terminal point, rigid AWG min.24
Data: Ethernet interface, 10/100/1000Base-T(X) in accordance with IEEE 802.3
Connection methodRJ45 CAT5e
No. of channels1
Dimensions
Dimensional drawingnjhfrmmnrp.jpg
Width29 mm
Height90 mm
Depth53 mm
Material specifications
Color (Housing)green (RAL 6021)
Material (Housing)PVC / PA
Cable/line
External cable diameter6 mm ... 10 mm
Cable impedance100 Ω
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≤ 2500
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C
Ambient temperature (storage/transport)-25 °C ... 85 °C
Ambient temperature (assembly)-10 °C ... 70 °C
Permissible humidity (operation)25 % ... 95 % (non-condensing)
Approvals
ATEX
Identification II 3 G Ex ec IIC Gc
CertificatePxCIF14ATEX2901642U
NotePlease follow the special installation instructions in the documentation!
UKEX
Identification II 3 G Ex ec IIC Gc
CertificatePxCIMA21UKEX2901642U
Corrosive gas test
IdentificationISA-S71.04-1985 G3 Harsh Group A
Shipbuilding
IdentificationDNV GL
DNV GL data
TemperatureB
HumidityA
VibrationA
EMCB
EnclosureRequired protection according to the Rules shall be provided upon installation on board
Mounting
Mounting typeDIN rail mounting

ETIM for 2901642 Data networking products (EC001128)
Feature Name Feature Value
Number of buses/couplings (EF004395) 1
Suitable for number of connectors (EF001579) 1
Type of connector (EF002935) Other
Screened (EF000881) Yes
Category (EF001619) 5
Number of height units (EF003561) 2
Height (EF000040) 90 mm
Width (EF000008) 29 mm
Depth (EF000049) 53 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
