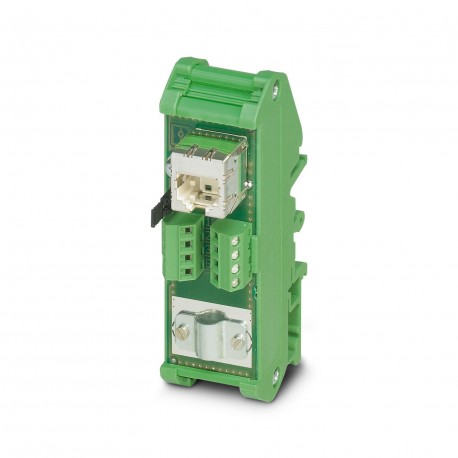

FL-PP-RJ45-SC 2901643 PHOENIX CONTACT Patch panel, one RJ45 socket to 8 screw connection terminal blocks (1:..
FL-PP-RJ45-SC
2901643
PHOENIX CONTACT
10 Pcs.
Patch panel, one RJ45 socket to 8 screw connection terminal blocks (1:1 assignment), CAT5e, 10/100/1000 Mbps, DIN rail mounting, IP20, option of shield contacting on DIN rail via jumpers
Patch panel, one RJ45 socket in 8 screw terminals (1:1 layout), CAT5e, 10/100/1000 MBit/s, DIN rail adapter, IP20, DIN rail protection contact via jumper
Patch panel, one RJ45 socket on 8 screw terminals (1:1 design), CAT5e, 10/100/1000 Mbit/s, adapters for DIN rail mounting, IP20, optionally DIN rail shielding connection via jumper
Automation > Patch panel copper (twisted pair)
Safety
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Width | 29 mm |
|---|---|
| Height | 90 mm |
| Depth | 53 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 25 % ... 95 % (non-condensing) |
| Degree of protection | IP20 |
General
| Net weight | 58.08 g |
|---|---|
| Housing material | PVC / PA |
| Color | green |
| MTBF | 6702 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| 2962 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) | |
| ATEX | Ex II 3 G Ex nA IIC Gc U (Please follow the special installation instructions in the documentation!) |
Serial interface
| Interface 1 | Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u |
|---|---|
| Connection method | Screw connection |
| Transmission length | 100 m (including patch cables) |
| Conductor cross section solid min. | 0.14 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 1 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 16 |
| Pin assignment | 1:1 |
| Serial transmission speed | 10/100/1000 Mbps |
| Interface 2 | Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u |
| Connection method | RJ45 CAT5e |
