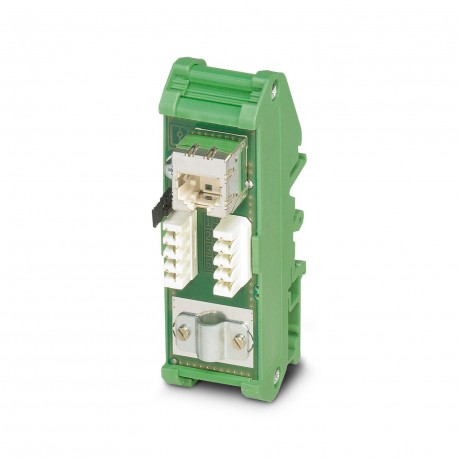

PHOENIX CONTACT FL-PP-RJ45-LSA FL-PP-RJ45-LSA 2901645 PHOENIX CONTACT Patch panel, one RJ45 socket to 8 IDC connection terminal blocks (1:1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FL-PP-RJ45-LSA 2901645 PHOENIX CONTACT Patch panel, one RJ45 socket to 8 IDC connection terminal blocks (1:1..

FL-PP-RJ45-LSA

2901645

PHOENIX CONTACT

1 Pcs.

Patch panel, one RJ45 socket to 8 IDC connection terminal blocks (1:1 assignment), CAT5e, 10/100/1000 Mbps, DIN rail mounting, IP20, option of shield contacting on DIN rail via jumpers Patch panel, one RJ45 female connector in 8 LSA terminal blocks (1:1 arrangement), CAT5e, 10/100/1000 MBit/s, DIN rail adapter, IP20, DIN rail protection contact via jumper Patch panel, one RJ45 socket on 8 LSA terminals (1:1 assignment), CAT5e, 10/100/1000 Mbit/s, DIN rail adapter, IP20, shield contact to DIN rail selectable via jumper

Automation > Patch panel copper (twisted pair)
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Dimensions

Width29 mm
Height90 mm
Depth53 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 70 °C
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)25 % ... 95 % (non-condensing)
Degree of protectionIP20

General

Net weight58.6 g
Housing materialPVC / PA
Colorgreen
MTBF6702 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
2962 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day))

Serial interface

Interface 1Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u
Connection methodLSA
Transmission length100 m (including patch cables)
Conductor cross section solid min.0.128 mm²
Conductor cross section solid max.0.325 mm²
Conductor cross section flexible min.0.128 mm²
Conductor cross section flexible max.0.325 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.22
Pin assignment1:1
Serial transmission speed10/100/1000 Mbps
Interface 2Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u
Connection methodRJ45 CAT5e

ETIM for 2901645 Data networking products (EC001128)
Feature Name Feature Value
Number of buses/couplings (EF004395) 1
Suitable for number of connectors (EF001579) 1
Type of connector (EF002935) Other
Screened (EF000881) Yes
Category (EF001619) 5
Number of height units (EF003561) 2
Height (EF000040) 90 mm
Width (EF000008) 29 mm
Depth (EF000049) 53 mm
