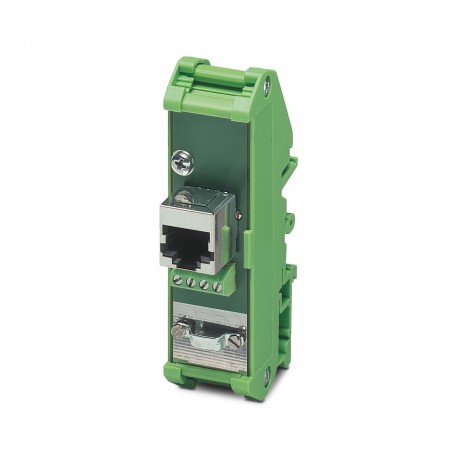

FL CAT5 TERMINAL BOX 2744610 PHOENIX CONTACT Patch panels
FL CAT5 TERMINAL BOX
2744610
PHOENIX CONTACT
10 Pcs.
Patch panels
Patch panel, one RJ45 female connector in 4 screw terminals (arrangement 1, 2, 3, 6), CAT5e, 10/100 MBit/s, DIN rail adapter, IP20, DIN rail protection contact possible
Patch panel, one RJ45 jack to 4 screw connection terminal blocks (assignment 1, 2, 3, 6), CAT5e, 10/100 Mbps, DIN rail adapter, IP20, shield contacting on DIN rail
Automation > Patch panel copper (twisted pair)
Safety
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Note on application | |
| Note on application | Only for industrial use |
Product properties
| Product type | Patch panel |
| MTBF | 6702 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| 2962 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) | |
| Data management status | |
| Article revision | 06 |
Electrical properties
| Supply | |
| Typical current consumption | < 1 A |
Interfaces
| Data: Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3 | |
| Serial transmission speed | 10/100 Mbps |
| Connection method | Screw connection |
| No. of channels | 1 |
| Tightening torque | 0.22 Nm ... 0.25 Nm |
| Pin assignment | 1:1 |
| Transmission length | 100 m (including patch cables) |
| Single conductor/terminal point, rigid | 0.14 mm² ... 1.5 mm² |
| Single-wire/terminal point, flexible | 0.14 mm² ... 1 mm² |
| Single-wire/terminal point, rigid AWG max. | 16 |
| Single-wire/terminal point, rigid AWG min. | 26 |
| Data: Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3 | |
| Connection method | RJ45 CAT5e |
| No. of channels | 1 |
Dimensions
| Dimensional drawing |  |
| Width | 25 mm |
| Height | 90 mm |
| Depth | 52 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Material (Housing) | PVC / PA |
Cable/line
| External cable diameter | 6 mm ... 10 mm |
| Cable impedance | 100 Ω |
Mechanical properties
| Mechanical data | |
| Insertion/withdrawal cycles | ≤ 2500 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 70 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Ambient temperature (assembly) | -10 °C ... 70 °C |
| Permissible humidity (operation) | 25 % ... 95 % (non-condensing) |
Approvals
| Shipbuilding | |
| Identification | DNV GL |
| DNV GL data | |
| Temperature | B |
| Humidity | A |
| Vibration | A |
| EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Mounting
| Mounting type | DIN rail mounting |
| Feature Name | Feature Value |
|---|---|
| Number of buses/couplings (EF004395) | 1 |
| Suitable for number of connectors (EF001579) | 1 |
| Type of connector (EF002935) | Other |
| Screened (EF000881) | Yes |
| Category (EF001619) | 5 |
| Number of height units (EF003561) | 2 |
| Height (EF000040) | 90 mm |
| Width (EF000008) | 25 mm |
| Depth (EF000049) | 52 mm |
