View larger
Images are for illustrative purposes only. Please refer to data sheet for details

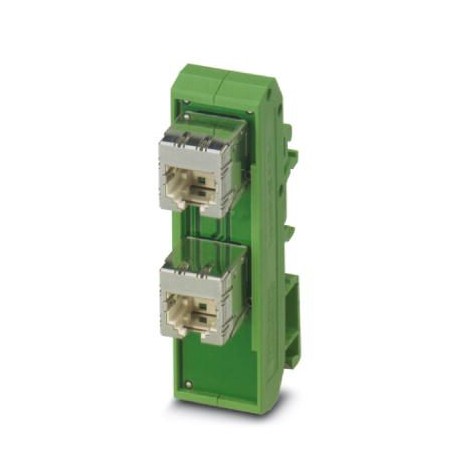

FL-PP-RJ45/RJ45-B 2904933 PHOENIX CONTACT Patch panels
FL-PP-RJ45/RJ45-B
2904933
PHOENIX CONTACT
10 Pcs.
Patch panels
Patch panel, narrow overall width, extended temperature range, two RJ45 sockets, 1:1 layout, continuous display, CAT5, 10/100 MBit/s, DIN rail adapter, IP20
Automation > Patch panel copper (twisted pair)
Safety
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2904933 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 347 (C-6-2017) |
| GTIN | 4046356900836 |
| Weight per Piece (excluding packing) | 41.700 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 25 % ... 95 % (non-condensing) |
| Degree of protection | IP20 |
Serial interface
| Interface 1 | Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u |
|---|---|
| No. of ports | 1 |
| Connection method | RJ45 CAT5 |
| Transmission length | 100 m (including patch cables) |
| Pin assignment | 1:1 |
| Serial transmission speed | 10/100 Mbps |
| Interface 2 | Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u |
| No. of ports | 1 |
| Connection method | RJ45 CAT5 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027250591eCl@ss 4.127240409eCl@ss 5.027259207eCl@ss 5.127230200eCl@ss 6.019170100eCl@ss 7.019170112eCl@ss 8.019170112eCl@ss 9.019170112
| Feature Name | Feature Value |
|---|---|
| Number of buses/couplings (EF004395) | 1 |
| Suitable for number of connectors (EF001579) | 1 |
| Type of connector (EF002935) | Other |
| Screened (EF000881) | Yes |
| Category (EF001619) | 5 |
| Number of height units (EF003561) | 2 |
| Height (EF000040) | 78 mm |
| Width (EF000008) | 22.5 mm |
| Depth (EF000049) | 44 mm |
