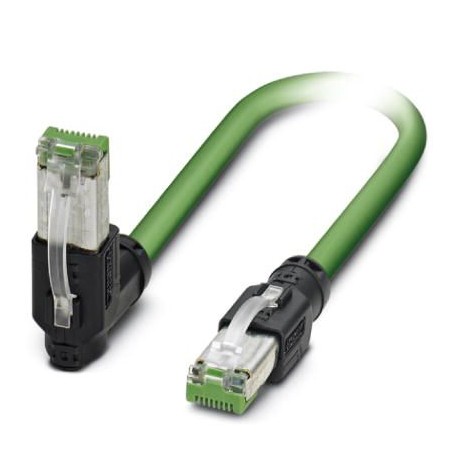

VS-PNRJ45-PNRJ45R-93B-2,0 1418277 PHOENIX CONTACT Patch cable
VS-PNRJ45-PNRJ45R-93B-2,0
1418277
PHOENIX CONTACT
1 Pcs.
Patch cable
Patch cable, protection index: IP20, cable length: 2 m, number of poles: 4, 100 MBit/s, CAT5, material: PA 6.6, PROFINET
Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1418277 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 398 (C-2-2017) |
| GTIN | 4046356534505 |
| Weight per Piece (excluding packing) | 153.000 g |
| Custom tariff number | 85444210 |
| Country of origin | PL (Poland) |
General data
| Number of positions | 4 |
|---|---|
| Overvoltage category | I |
| Degree of pollution | 1 |
| Rated voltage (III/3) | 72 V (DC) |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Housing material | PA 6.6 |
Cable
| Signal type/category | PROFINET CAT5 (IEC 11801:2002) |
|---|---|
| Cable structure | 1x4xAWG22/7; SF/TQ |
| Conductor cross section | 0.34 mm² |
| AWG signal line | 22 |
| Conductor structure signal line | 7x 0.25 mm |
| Core diameter including insulation | approx. 1.5 mm |
| Wire colors | White, yellow, blue, orange |
| External sheath, color | green RAL 6018 |
| Smallest bending radius, fixed installation | 60 mm |
| Smallest bending radius, movable installation | 30 mm |
| Outer sheath, material | PVC |
| Conductor material | Tin-plated Cu litz wires |
| Wave impedance | 100 Ω ±15 Ω (at 1 ... 100 MHz) |
