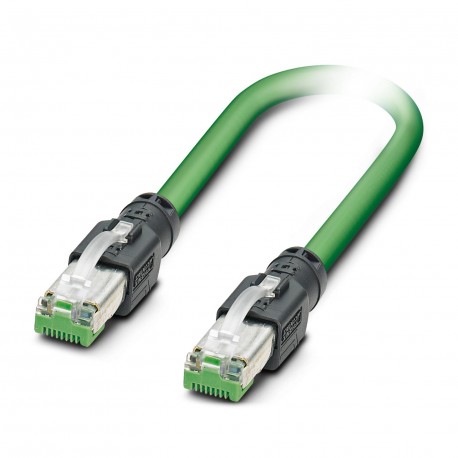

PHOENIX CONTACT VS-PNRJ45-PNRJ45-93B-15,0 VS-PNRJ45-PNRJ45-93B-15,0 1406407 PHOENIX CONTACT Patch cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-PNRJ45-PNRJ45-93B-15,0 1406407 PHOENIX CONTACT Patch cable

VS-PNRJ45-PNRJ45-93B-15,0

1406407

PHOENIX CONTACT

1 Pcs.

Patch cable Patch cable, protection index: IP20, cable length: 15 m, number of poles: 4, PROFINET Patch cable, degree of protection: IP20, cable length: 15 m, number of positions: 4, 100 Mbps, PROFINET

Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData cable preassembled
ApplicationStandard
Sensor typePROFINET
Number of positions4
Shieldedyes
Data management status
Article revision05
Insulation characteristics
Overvoltage categoryI
Signaling
Status displayno
Electrical properties
Rated voltage (III/3)72 V (DC)
Transmission mediumCopper
Transmission characteristics (category)CAT5
Transmission speed100 Mbps
Mechanical properties
Mechanical data
Insertion force per signal contact50.00 N
Extraction force per signal contact30 N
Connector
Connection 1
TypePlug straight RJ45
Shieldedyes
Degree of protectionIP20
Connection 2
TypePlug straight RJ45
Shieldedyes
Insertion/withdrawal cycles≥ 750
Degree of protectionIP20
Cable/line
Cable length15.00 m
PROFINET PVC stranded CAT5 [93B]
Dimensional drawingebkbgtwzch.jpg
NoteMinimum bending radius 4 x D
Shieldedyes
Cable typePROFINET PVC stranded CAT5
Cable type (abbreviation)93B
Signal type/categoryPROFINET CAT5 (IEC 11801:2002), 100 Mbps
Cable structure1x4xAWG22/7, SF/TQ
External cable diameter6.50 mm
Outer sheath, materialPVC
External sheath, colorgreen RAL 6018
Conductor materialTin-plated Cu litz wires
Conductor structure signal line7x 0.25 mm
AWG signal line22
Conductor cross section4x 0.34 mm²
Wire diameter incl. insulationapprox. 1.5 mm
Single wire, colorwhite, yellow, blue, orange
Wave impedance100 Ω ±15 Ω (at 1 ... 100 MHz)
Smallest bending radius, fixed installation30 mm
Smallest bending radius, movable installation60 mm
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20

ETIM for 1406407 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 15 m
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) No
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Degree of protection (IP) (EF005474) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
