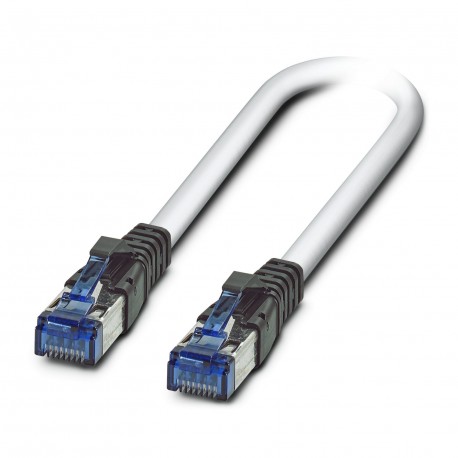

PHOENIX CONTACT FL CAT6 PATCH 3,0 FL CAT6 PATCH 3,0 2891686 PHOENIX CONTACT Patch cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FL CAT6 PATCH 3,0 2891686 PHOENIX CONTACT Patch cable

FL CAT6 PATCH 3,0

2891686

PHOENIX CONTACT

1 Pcs.

Patch cable Patch Cable, CAT6, Pre-Assembled, 3.0 m Patch cable, degree of protection: IP20, cable length: 3 m, number of positions: 8, 1 Gbps, CAT6, Ethernet

Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData cable preassembled
Sensor typeEthernet
Number of positions8
Connection profileRJ45
Electrical properties
Contact resistance≤ 0.003 Ω (IEC 60603-7)
Nominal voltage UN150 Vrms
Nominal current IN1.5 A
Transmission speed1 Gbps
Mechanical properties
Mechanical data
Insertion force per signal contact30.00 N
Extraction force per signal contact50 N
Material specifications
Flammability rating according to UL 94V0
Outer sheath, materialLSFROH
Dimensions
Width12.6 mm
Height6.6 mm
Length40.05 mm
External dimensions
External diameter max.6.2 mm
Connector
Connection 1
TypePlug straight RJ45
Shieldedyes
Insertion/withdrawal cycles≥ 750
Degree of protectionIP20
Connection 2
TypePlug straight RJ45
Cable/line
Cable length3.00 m
External cable diameter6.00 mm
Outer sheath, materialLSFROH
Single wire, number of litz wires8
Single wire, materialCu litz wire
Single wire, cross section0.14 mm²
ShieldingS/FTP
Smallest bending radius, fixed installation30 mm
Halogen-freeaccording to IEC 60754-1
Concentration of fumesin accordance with IEC 61034
Flame resistanceaccording to IEC 60332-3C
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-10 °C ... 60 °C
Standards and regulations
Flame resistanceaccording to IEC 60332-3C
Concentration of fumesin accordance with IEC 61034

ETIM for 2891686 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 3 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) No
With LED indication (EF005950) No
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Rated current In (EF008250) 1.5 A
Rated voltage (EF000228) 150 V
Degree of protection (IP) (EF005474) Other
