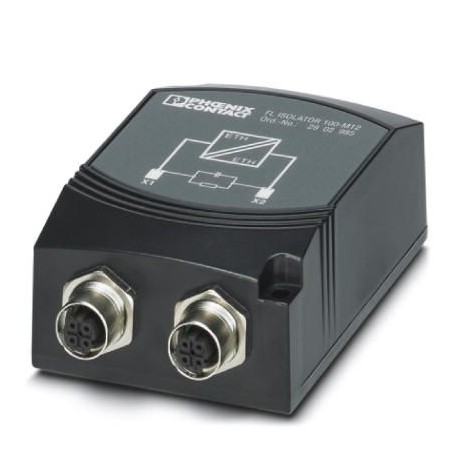

FL ISOLATOR 100-M12 2902985 PHOENIX CONTACT Network isolator

FL ISOLATOR 100-M12

2902985

PHOENIX CONTACT

1 Pcs.

Network isolator Passive network isolator e.g. galvanic separation in Ethernet networks. To protect Ethernet devices against potential differences up to 4 kV. Attachable for sending ranges up to 100 MBits/s. Ethernet connection via two connected females. M12 (coded D).

Automation > Accessories/spare parts for controls
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2902985
Packing unit1 pc
Catalog pagePage 345 (C-6-2017)
GTIN4046356727815
Weight per Piece (excluding packing)155.000 g
Custom tariff number85437090
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Dimensional drawing
Width66 mm
Height91 mm
Depth34 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 75 °C (85°C for 10 min.; thereafter function can no longer be guaranteed - check device)
Ambient temperature (storage/transport)-40 °C ... 75 °C
Permissible humidity (operation)10 % ... 95 %
Permissible humidity (storage/transport)5 % ... 95 %
Altitude5000 m (For restrictions see manufacturer's declaration)
Degree of protectionIP54

General

Electrical isolationPort X1//port X2
Test voltage data interface/data interface4 kV AC (50 Hz, 1 min.)
Insulation voltage input/output250 Vrms
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Mounting positionWall mounting
Net weight155 g
Housing materialPlastic, FR 2010
V0 (UL 94)
Colorblack
MTBF38062 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day))
12264 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day))
MTTF18372 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day))
13381 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
3348 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day))
ConformanceCE-compliant

Power supply

Supply voltage rangepassive module, no supply voltage required

Serial interface

Interface 1Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u
InterfaceEthernet
No. of ports1
Connection methodM 12 connectors (D-coded, female)
Transmission length≤ 100 m (Total length across both ports (dependent on data rate and cable used))
Protocols supportedTransparent protocol for IPv4 and IPv6
Serial transmission speed10/100 Mbps
Interface 2Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u
InterfaceEthernet
No. of ports1
Connection methodM 12 connectors (D-coded, female)

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Type of testVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Test result5g, 10...150 Hz, 2.5 h, in XYZ direction
Type of testVibration resistance according to IEC 61373, EN 61373
Test resultCategory 1, Class B
Type of testShock in acc. with EN 60068-2-27/IEC 60068-2-27
Test result15g, 11 ms period, half-sine shock pulse
Type of testShock in acc. with EN 60068-2-27/IEC 60068-2-27
Test result30g, 18 ms period, half-sine shock pulse
Standards/regulationsEN 61000-4-2
EN 61000-4-4
EN 61000-4-5
Signal± 1 kV (Data line, asymmetrical)
Standards/regulationsEN 61000-6-4
EN 50121 and EN 50155 (for railway applications)
IEC 60571
DIN EN 50153
ConformanceCE-compliant
Noxious gas testISA-S71.04-1985 G3 Harsh Group A

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2902985 PLC's (EC002584)
Feature Name Feature Value
Type of electrical accessory/spare part (EF005722) Other
Type of mechanical accessory/spare part (EF005994) Other
Accessory (EF013236) Yes
Spare part (EF013237) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
