View larger
Images are for illustrative purposes only. Please refer to data sheet for details

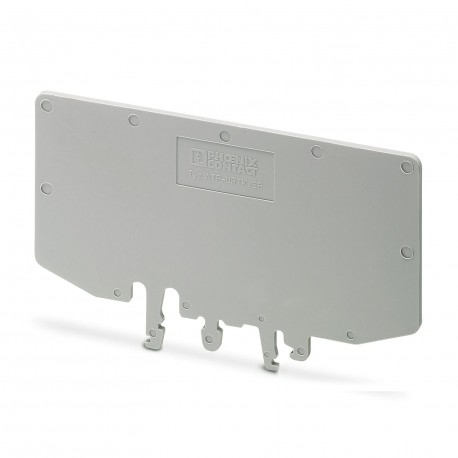

ATP-URTK/SP 0311139 PHOENIX CONTACT Partition plate, Length: 99 mm, Width: 2 mm, Height: 64 mm, Color: gray
ATP-URTK/SP
0311139
PHOENIX CONTACT
10 Pcs.
Partition plate, Length: 99 mm, Width: 2 mm, Height: 64 mm, Color: gray
Separator plate, length: 99 mm, width: 2 mm, height: 64 mm, color: grey
Partition plate, depth: 64 mm, width: 2 mm, height: 99 mm, color: gray
Automation > Endplate and partition plate for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Partition plate |
| Data management status | |
| Article revision | 01 |
Dimensions
| Width | 2 mm |
| Height | 99 mm |
| Depth | 64 mm |
Material specifications
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Static insulating material application in cold | -40 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
