View larger
Images are for illustrative purposes only. Please refer to data sheet for details

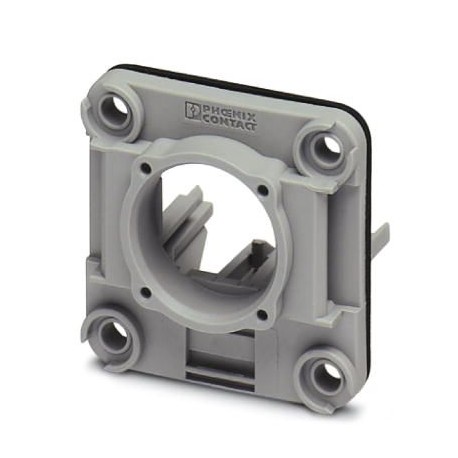

VS-A-F-IP67 1653744 PHOENIX CONTACT Panel mounting frames
VS-A-F-IP67
1653744
PHOENIX CONTACT
5 Pcs.
Panel mounting frames
Recessed frame, IP67, for Freenet system, for circular mounting opening, with gasket, without fixing screws, color: Gray
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1653744 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Catalog page | Page 355 (C-2-2017) |
| GTIN | 4017918970123 |
| Weight per Piece (excluding packing) | 6.410 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of slots | 1 |
|---|---|
| Insertion/withdrawal cycles | ≥ 1000 |
| Color | gray |
| Degree of protection | IP67 |
| Type | RJ45, IP67, version 6 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PA |
| Material | Plastic |
| Sealing material | NBR |
| Seal material | NBR |
| Depth | 27.5 mm |
| Height | 36 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027261200eCl@ss 7.027440210eCl@ss 8.027440210eCl@ss 9.027440210
| Feature Name | Feature Value |
|---|---|
| Material assembly frame (EF007542) | Plastic |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 36 mm |
| Height (EF000040) | 36 mm |
| Depth (EF000049) | 27.6 mm |
