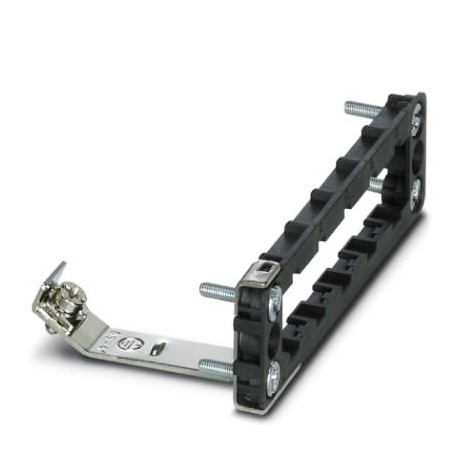

VC-AR4/5M-PEA 1607790 PHOENIX CONTACT Panel mounting frames
VC-AR4/5M-PEA
1607790
PHOENIX CONTACT
1 Pcs.
Panel mounting frames
Recessed frame, Article family: VARIOCON, construction: VC4, housing material: Polyamide. Prescribed for support housings and voltages > 42 V
Connectors > Fixing element for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1607790 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 30 (C-2-2013) |
| GTIN | 4017918948870 |
| Weight per Piece (excluding packing) | 28.900 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
General
| Note | Required for supporting base elements and voltages > 42 V |
|---|---|
| Size | VC4 |
| Conductor cross section | 0.5 mm² ... 4 mm² (for PE conductor) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027189239eCl@ss 5.127189200eCl@ss 6.027261200eCl@ss 7.027440210eCl@ss 8.027440210eCl@ss 9.027440210
| Feature Name | Feature Value |
|---|---|
| Material assembly frame (EF007542) | Other |
| With PE-connection (EF005600) | Yes |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 95.6 mm |
| Height (EF000040) | 25.5 mm |
| Depth (EF000049) | 56.2 mm |
