View larger
Images are for illustrative purposes only. Please refer to data sheet for details

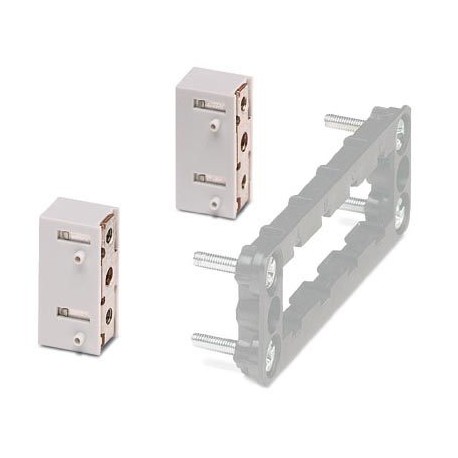

VC-AF 1852862 PHOENIX CONTACT Mounting flange
VC-AF
1852862
PHOENIX CONTACT
50 Pcs.
Mounting flange
Recessed flange for screw lock for mounting the contact insert module for wall thicknesses from 1 to 5 mm
Connectors > Fixing element for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1852862 |
|---|---|
| Packing unit | 50 pc |
| Catalog page | Page 25 (C-2-2013) |
| GTIN | 4017918127183 |
| Weight per Piece (excluding packing) | 5.530 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 125 °C |
|---|---|
| Ambient temperature (assembly) | -40 °C ... 70 °C |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027371205eCl@ss 5.127371200eCl@ss 6.027261200eCl@ss 7.027440210eCl@ss 8.027440210eCl@ss 9.027440210
| Feature Name | Feature Value |
|---|---|
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 10 mm |
| Height (EF000040) | 25.3 mm |
| Depth (EF000049) | 16.2 mm |
