View larger
Images are for illustrative purposes only. Please refer to data sheet for details

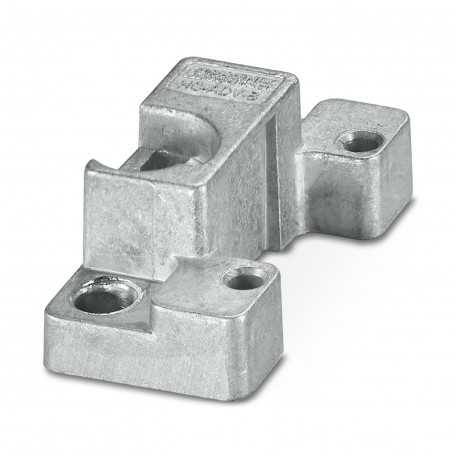

HC-B-BF 1604641 PHOENIX CONTACT Mounting flange
HC-B-BF
1604641
PHOENIX CONTACT
20 Pcs.
Mounting flange
for HEAVYCON ADVANCE TMB housing with bayonet lock
Panel mounting flange for HEAVYCON ADVANCE TMB housing with bayonet locking
Connectors > Accessories/spare parts for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | 2 for every connector |
Product properties
| Product type | Panel-mount flange |
| Pg screw connection | none |
| Data management status | |
| Article revision | 05 |
Dimensions
| Dimensional drawing |  |
| Hole diameter | 4.5 mm |
Material specifications
| Material | Die-cast zinc |
Mechanical properties
| Mechanical data | |
| Locking type | Nut |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Mounting
| Assembly note | In order to guarantee that the protective conductor contact functions even when plugged in at an angle, the two panel-mount flanges must have sufficient electrical contact with the metal mounting panel. |
