View larger
Images are for illustrative purposes only. Please refer to data sheet for details

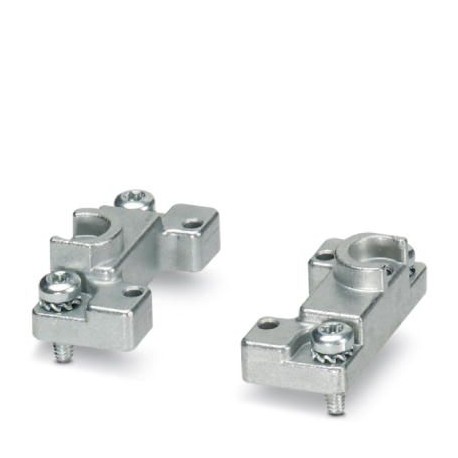

HC-B-AF-SET 1604638 PHOENIX CONTACT Mounting flange
HC-B-AF-SET
1604638
PHOENIX CONTACT
1 Pcs.
Mounting flange
Clamping flange for HEAVYCON ADVANCE housing, set consisting of: 2 clamping flanges with 4 self-tapping screws (M4, Torx®) and 4 toothed washers
Connectors > Accessories/spare parts for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1604638 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 586 (C-2-2017) |
| GTIN | 4017918893262 |
| Weight per Piece (excluding packing) | 28.700 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
General
| Material | Aluminum, die-cast |
|---|---|
| Note | 1 for every connector |
| Assembly instructions | In order to guarantee that the ground conductor contact functions even when plugged in at an angle, the two panel mounting flanges must have sufficient electrical contact with the metal mounting panel. |
| Connection | Minimum panel thickness of a steel sheet: 2.0 mm. For mounting with self-tapping M4 screws: 3.6 mm drill-hole diameter |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
