View larger
Images are for illustrative purposes only. Please refer to data sheet for details

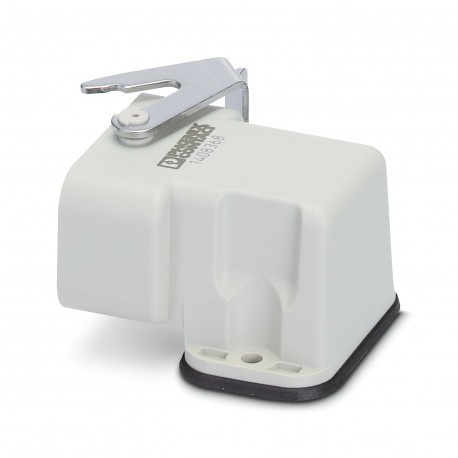

HC-COM-K-AML-GW 1408368 PHOENIX CONTACT Housing
HC-COM-K-AML-GW
1408368
PHOENIX CONTACT
2 Pcs.
Housing
Recessed housing with longitudinal flange elbow design
Panel mounting base with single locking engagement nose, angled design
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Product family | HC-COM |
| Application | Standard |
| Type | COM |
| Pg screw connection | none |
| Data management status | |
| Article revision | 01 |
Dimensions
| Dimensional drawing |  |
| Width | 46 mm |
| Height | 33.5 mm |
| Length | 54.5 mm |
| Installation dimensions | |
| Width of the assembly cutout | 24 mm |
| Length of the assembly cutout | 26 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Housing material | PC |
| Locking latch material | Stainless steel |
Mechanical properties
| Mechanical data | |
| Locking type | Latch |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| IP66 | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
