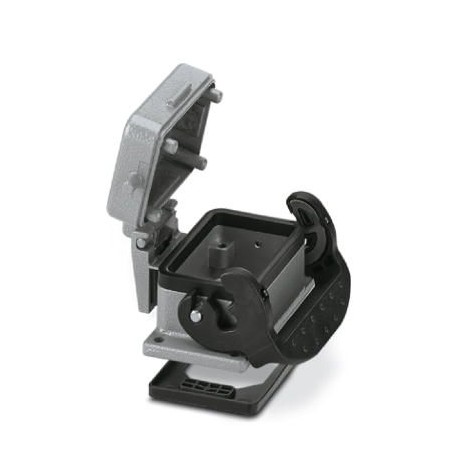

PHOENIX CONTACT HC-B 6-AMLD-AL HC-B 6-AMLD-AL 1645464 PHOENIX CONTACT Housing

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

HC-B 6-AMLD-AL 1645464 PHOENIX CONTACT Housing

Name: HC-B 6-AMLD-AL 1645464 PHOENIX CONTACT Housing
Brand: PHOENIX CONTACT
SKU: 1645464

Reference: HC-B 6-AMLD-AL

Code: 1645464

Manufacturer: PHOENIX CONTACT

Units per package: 10 Pcs.

Description:

Housing Recessed housing B6, with longitudinal flange, material: Die-cast aluminum, protective cap material: Al, height: 29 mm, cable gland: without, tubing: no, protective cover: yes, Standard, with flat gasket

Categories:
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	1645464
Packing unit	10 pc
Catalog page	Page 488 (C-4-2013)
GTIN	4046356028615
Weight per Piece (excluding packing)	157.150 g
Custom tariff number	85369010
Country of origin	DE (Germany)

Dimensions

Height	29 mm
Width	43 mm
Length	80 mm
Length of the assembly cutout	52 mm
Width of the assembly cutout	35 mm

Ambient conditions

Degree of protection of housing (IP)	IP65 (When plugged in)
	IP54 (with closed protective cover)
Ambient temperature (operation)	-40 °C ... 125 °C

General

Note	For contact inserts HC-B6, BB10, DD24, M
Size	B6
Housing type	Panel mounting base
Locking type	with single locking latch
Torque	1.5 Nm ... 2 Nm (Mounting screw)
Screw connection	none
Protective cover	yes
Housing material	Aluminum die-cast
Housing surface material	Powder-coated, gray
Material lock	Stainless steel, handle: PA
Material grip body interlock	PA
Material, protective cover	Al
