View larger
Images are for illustrative purposes only. Please refer to data sheet for details

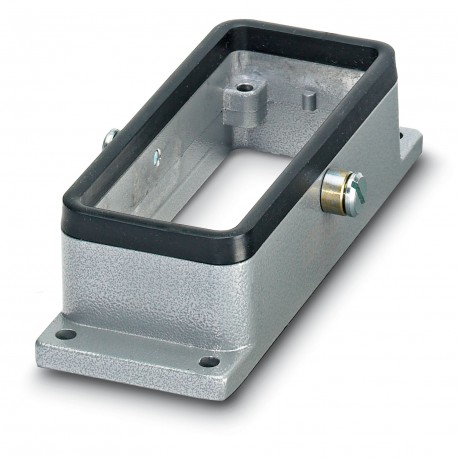

HC-B 16-AFZ 1584622 PHOENIX CONTACT Housing
HC-B 16-AFZ
1584622
PHOENIX CONTACT
10 Pcs.
Housing
Recessed housing HEAVYCON B16, for central flange, height 29 mm
HEAVYCON B16 panel mounting base, for central locking latch, height: 29 mm
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K |
Product properties
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Application | Standard |
| Type | B16 |
Dimensions
| Dimensional drawing |  |
| Width | 43 mm |
| Height | 29 mm |
| Length | 114 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 86 mm |
Material specifications
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
