View larger
Images are for illustrative purposes only. Please refer to data sheet for details

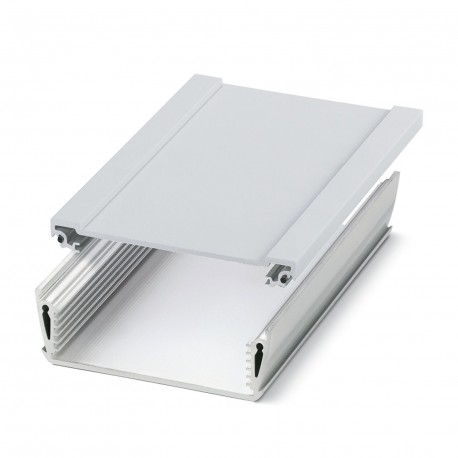

HC-ALU 6-78 PROFILE 200 2200894 PHOENIX CONTACT Electronic housing
HC-ALU 6-78 PROFILE 200
2200894
PHOENIX CONTACT
1 Pcs.
Electronic housing
Profile box, Wall mounting (optional with accessories), Aluminium profile, 2 pieces, colour: graphite grey (7024), profile width (inside): 78 mm, profile width (outside): 98.5 mm, length: 200 mm, height: 98.5 mm, depth: 38.2 mm
Profile housing, Wall mounting (with accessories as an option), Aluminum profile, 2-piece, profile width (internal): 78 mm, profile width (external): 98.5 mm, length: 200 mm, height: 98.5 mm, depth: 38.2 mm
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Component housing lower part |
| Housing type | Profile housing |
| Housing series | HC-ALU |
| Product family | HC-ALU 6-78 |
| Type | Aluminum profile, 2-piece |
| Ventilation openings present | no |
Dimensions
| Dimensional drawing |  |
| Height | 98.5 mm |
| Depth | 38.2 mm |
| Length | 200 mm |
| External dimensions | |
| Profile width (external) | 98.5 mm |
| Internal dimensions | |
| Profile width (internal) | 78 mm |
Material specifications
| Color (Housing) | graphite grey (RAL 7024) |
| Housing material | Aluminum |
| Surface characteristics | powder coated |
Environmental and real-life conditions
| Ambient conditions | |
| Max. IP code to attain | IP65 |
| Ambient temperature (operation) | -40 °C ... 85 °C |
PCB data
| Number of PCB holders | 7 |
| Type of PCB mount | Slot |
Mounting
| Mounting type | Wall mounting (with accessories as an option) |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Material (EF002169) | Aluminium |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Other |
| RAL-number (EF000116) | 7024 |
| Width (EF000008) | 200 mm |
| Height (EF000040) | 98.5 mm |
| Depth (EF000049) | 38.2 mm |
