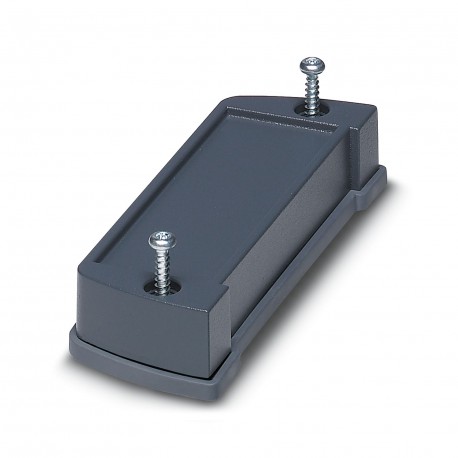

HC-ALU 6-78 COVER GY 2200896 PHOENIX CONTACT End cover
HC-ALU 6-78 COVER GY
2200896
PHOENIX CONTACT
1 Pcs.
End cover
Profile box, End cover, with screws and gasket, for profile width (inside) 78 mm, colour: graphite grey (7024), width: 101.9 mm, length: 15 mm, depth: 78 mm
Profile housing, End cover, with screws and seal, for 78 mm profile width (internal), width: 101.9 mm, length: 15 mm, depth: 78 mm
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Panel mounting base side part |
| Housing type | Profile housing |
| Housing series | HC-ALU |
| Product family | HC-ALU 6-78 |
| Type | End cover, with screws and seal, for 78 mm profile width (internal) |
| Ventilation openings present | no |
Dimensions
| Width | 101.9 mm |
| Depth | 78 mm |
| Length | 15 mm |
Material specifications
| Color (Housing) | graphite grey (RAL 7024) |
| Surface characteristics | powder coated |
Environmental and real-life conditions
| Ambient conditions | |
| Max. IP code to attain | IP65 |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Other |
| RAL-number (EF000116) | 7024 |
| Width (EF000008) | 101.9 mm |
| Depth (EF000049) | 78 mm |
