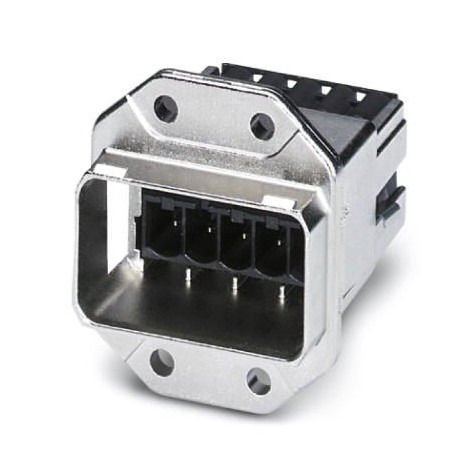

VS-PPC-F2-MSTB-MNNA-1R-SPSA5 1608249 PHOENIX CONTACT Panel feed-through
VS-PPC-F2-MSTB-MNNA-1R-SPSA5
1608249
PHOENIX CONTACT
1 Pcs.
Panel feed-through
Recessed push-pull frame made of metal, variant 14, incl. spring-loaded contact insert, fixed 24 V coding according to Guideline for PROFINET, for rectangular mounting opening, with gasket, without fixing screws
Connectors > Fixing element for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1608249 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 368 (C-2-2017) |
| GTIN | 4046356160049 |
| Weight per Piece (excluding packing) | 60.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General data
| Number of positions | 5 |
|---|---|
| Degree of pollution | 2 |
| Alternative short product description | Panel mounting frame for panel feed-through |
| Locking type | Push Pull |
| Rated voltage (III/3) | 24 V |
| Conductor cross section | 0.75 mm² ... 2.5 mm² |
| Connection cross section AWG | 18 ... 13 |
| Connection method | Spring-cage connection |
| Contact material | Copper alloy |
| Contact carrier material | PA |
| Contact surface material | Gold over nickel |
| Housing material | Zinc die-cast |
Classifications
eCl@ss 4.024190219eCl@ss 4.124190219eCl@ss 5.027400209eCl@ss 5.127400200eCl@ss 6.027261200eCl@ss 7.027440210eCl@ss 8.027440210eCl@ss 9.027440210
| Feature Name | Feature Value |
|---|---|
| Material assembly frame (EF007542) | Other |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 36.2 mm |
| Height (EF000040) | 42 mm |
| Depth (EF000049) | 41.9 mm |
