View larger
Images are for illustrative purposes only. Please refer to data sheet for details

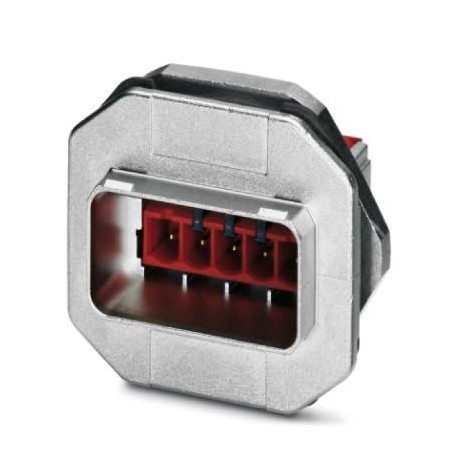

VS-PPC-F2-MSTB-MNNA-1C-SPSB5 1405167 PHOENIX CONTACT Panel mounting frames
VS-PPC-F2-MSTB-MNNA-1C-SPSB5
1405167
PHOENIX CONTACT
1 Pcs.
Panel mounting frames
Recessed frame MSTB, IP67, for push-pull locking, metal, with integrated contact insert for conductor connection, spring connection, 400 V, for round mounting opening, with gasket
Connectors > Fixing element for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1405167 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 350 (C-4-2015) |
| GTIN | 4046356332798 |
| Weight per Piece (excluding packing) | 117.320 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General data
| Number of positions | 5 |
|---|---|
| Degree of pollution | 2 |
| Alternative short product description | Panel mounting frame for push-pull interlocking |
| Locking type | Push Pull |
| Rated voltage (III/3) | 400 V |
| Conductor cross section | 0.75 mm² ... 2.5 mm² |
| Connection cross section AWG | 18 ... 13 |
| Connection method | Spring-cage connection |
| Contact material | Copper alloy |
| Contact carrier material | PA |
| Contact surface material | Gold over nickel |
| Housing material | Zinc die-cast |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
