View larger
Images are for illustrative purposes only. Please refer to data sheet for details

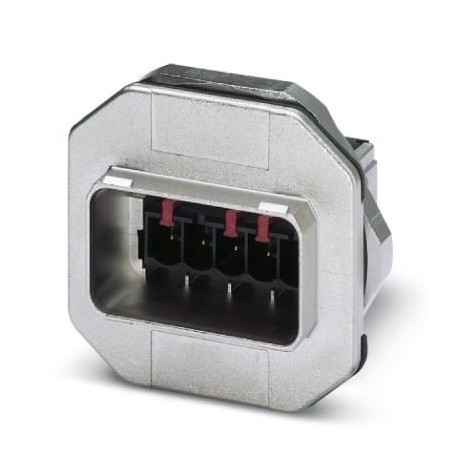

VS-PPC-F2-MSTB-MNNA-1C-SPSA5 1405248 PHOENIX CONTACT Panel mounting frames
VS-PPC-F2-MSTB-MNNA-1C-SPSA5
1405248
PHOENIX CONTACT
1 Pcs.
Panel mounting frames
Recessed frame MSTB, IP67, for push-pull locking, metal, with integrated contact insert for conductor connection, spring connection, 24 V, for round mounting opening, with gasket, without fixing screws
Connectors > Fixing element for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1405248 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 368 (C-2-2017) |
| GTIN | 4046356334808 |
| Weight per Piece (excluding packing) | 118.200 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 5 |
|---|---|
| Locking type | Push Pull |
| Connection method | Spring-cage connection |
| Conductor cross section | 0.75 mm² ... 2.5 mm² |
| Connection cross section AWG | 18 ... 13 |
| Color | silver |
| Degree of protection | IP65/IP67 |
| Type | Power, IP65/67, version 14 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Zinc die-cast |
| Housing surface material | Nickel-plated |
| Contact carrier material | PA |
| Contact material | Copper alloy |
| Contact surface material | Gold over nickel |
| Material | Metal |
| Sealing material | NBR |
| Seal material | NBR |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
