View larger
Images are for illustrative purposes only. Please refer to data sheet for details

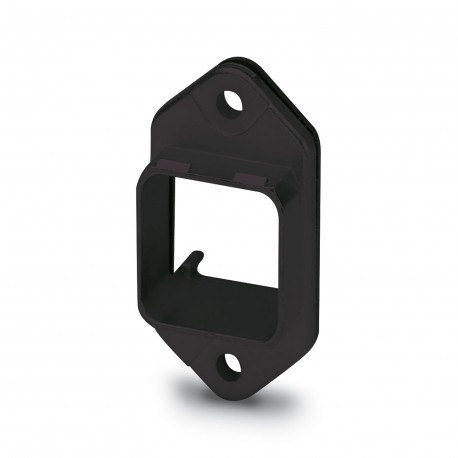

VS-PPC-F1-SCRJ-POBK-1RP 1657889 PHOENIX CONTACT Panel mounting frames
VS-PPC-F1-SCRJ-POBK-1RP
1657889
PHOENIX CONTACT
1 Pcs.
Panel mounting frames
Recessed frame SC-RJ, IP67, for push-pull lock, plastic, for transceiver, for rectangular mounting opening, with gasket, without fixing screws
Connectors > Fixing element for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1657889 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 356 (C-4-2015) |
| GTIN | 4046356131957 |
| Weight per Piece (excluding packing) | 4.600 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Insertion/withdrawal cycles | ≥ 500 |
|---|---|
| Color | black |
| Degree of protection | IP65/IP67 |
| Type | SCRJ, IP65/67, version 14 |
| Note | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.4 Connectors for outside environment (optical fibre) and chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PA-GF |
| Material | Plastic |
| Sealing material | NBR |
| Seal material | NBR |
| Height | 42 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027261200eCl@ss 7.027440210eCl@ss 8.027440210eCl@ss 9.027440210
| Feature Name | Feature Value |
|---|---|
| Material assembly frame (EF007542) | Plastic |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 22.2 mm |
| Height (EF000040) | 42 mm |
