View larger
Images are for illustrative purposes only. Please refer to data sheet for details

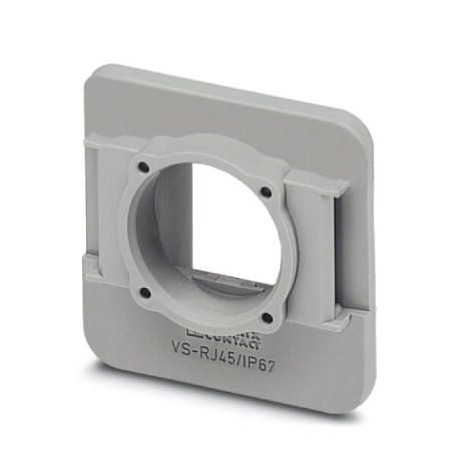

VS-08-A-RJ45/MOD-1-R-IP67 1689844 PHOENIX CONTACT Panel mounting frames
VS-08-A-RJ45/MOD-1-R-IP67
1689844
PHOENIX CONTACT
1 Pcs.
Panel mounting frames
RJ45 recessed frame, IP67, for modular female inserts (Keystone), for circular mounting opening, with gasket, with thread and union nut, color: Gray
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1689844 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 355 (C-2-2017) |
| GTIN | 4017918970802 |
| Weight per Piece (excluding packing) | 10.900 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of slots | 1 |
|---|---|
| Insertion/withdrawal cycles | ≥ 1000 |
| Color | gray |
| Tightening torque, min. | 2.5 Nm |
| Degree of protection | IP67 |
| Type | RJ45, IP67, version 6 |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 80 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PA |
| Material | Plastic |
| Sealing material | NBR |
| Seal material | NBR |
| Depth | 16.5 mm |
| Height | 36 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027261200eCl@ss 7.027440210eCl@ss 8.027440210eCl@ss 9.027440210
| Feature Name | Feature Value |
|---|---|
| Material assembly frame (EF007542) | Plastic |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 36 mm |
| Height (EF000040) | 36 mm |
| Depth (EF000049) | 16.4 mm |
