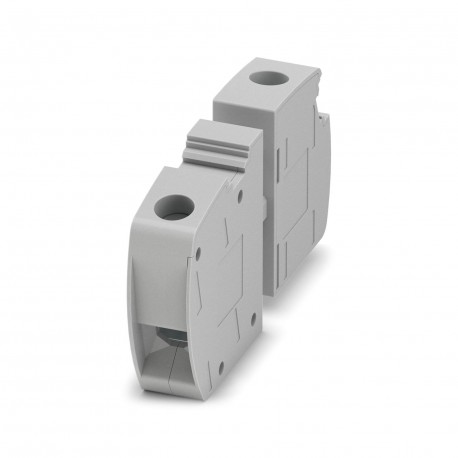

PHOENIX CONTACT UW 16 UW 16 3073348 PHOENIX CONTACT Panel feed-through terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UW 16 3073348 PHOENIX CONTACT Panel feed-through terminal block

UW 16

3073348

PHOENIX CONTACT

50 Pcs.

Panel feed-through terminal block Terminal block, connection type: Screw connection with traction capsule, Screw connection with traction capsule, number of poles: 1, charging current: 76 A, cross-section: 6 mm² - 25 mm², connection direction of the conductor with respect to the plug direction: 0 °, width: 12 mm Panel feed-through terminal block, connection method: Screw connection with tension sleeve, Screw connection with tension sleeve, number of positions: 1, load current: 76 A, cross section: 6 mm2 - 25 mm2, connection direction of the conductor to plug-in direction: 0 °, width: 12 mm, color: gray

Automation > Panel feed-through terminal block
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePanel feed-through terminal block
Product familyUW 16
Number of positions1
Pitch12 mm
Number of connections2
Number of rows1
Number of potentials1
Data management status
Article revision03
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Nominal current IN76 A
Nominal voltage UN500 V (without spacer plate)
Rated voltage (III/3)500 V
Rated surge voltage (III/3)6 kV
Connection data
Connection technology
Connector systemUW 16 / PW 16
Nominal cross section16 mm²
Conductor connection exterior
Connection methodScrew connection with tension sleeve
Connection direction of the conductor to plug-in direction0 °
Conductor cross section rigid6 mm² ... 25 mm²
Conductor cross section flexible6 mm² ... 16 mm²
Conductor cross section flexible, with ferrule without plastic sleeve6 mm² ... 16 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve6 mm² ... 16 mm²
2 conductors with same cross section, solid2.5 mm² ... 10 mm²
2 conductors with same cross section, flexible2.5 mm² ... 6 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve4 mm² ... 6 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve4 mm² ... 6 mm²
Internal cylindrical gageB7
Stripping length16 mm
Tightening torque2 Nm ... 2.3 Nm
Conductor connection interior
Connection methodScrew connection with tension sleeve
Connection direction of the conductor to plug-in direction0 °
Conductor cross section rigid6 mm² ... 25 mm²
Conductor cross section flexible6 mm² ... 16 mm²
Conductor cross section flexible, with ferrule without plastic sleeve6 mm² ... 16 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve6 mm² ... 16 mm²
2 conductors with same cross section, solid2.5 mm² ... 10 mm²
2 conductors with same cross section, flexible2.5 mm² ... 6 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve4 mm² ... 6 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve4 mm² ... 6 mm²
Internal cylindrical gageB7
Stripping length16 mm
Tightening torque2 Nm ... 2.3 Nm
Mounting
Attachment to feed-through panel
Tightening torque1 Nm (Mounting screw torque)
ScrewM4
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicstin-plated
Material data - housing
Color (Housing)gray (7042)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Notes
Safety note
Safety note• Only electrically qualified personnel may install and operate the product.
To recognize and prevent danger, the qualified personnel must be familiar with the basics of electrical engineering.
• Observe the technical data provided here and refer to the documents listed under “Downloads”. The download area contains important information, such as installation notes, technical drawings, and 3D data.
• The cable entry funnel is not safe to touch. Never connect or disconnect the terminal when it is energized. Take appropriate steps to ensure touch protection.
Dimensions
Dimensional drawingddiurgchyv.jpg
Pitch12 mm
Width [w]12 mm
External dimensions
Width [w]12 mm
Height [h3]41.14 mm
Length [l1]36.83 mm
Internal dimensions
Width [w]12 mm
Height [h4]38.31 mm
Length [l2]29.51 mm
Mechanical tests
Test for conductor damage and slackening
SpecificationIEC 60947-7-1:2009-04
ResultTest passed
Pull-out test
SpecificationIEC 60947-7-1:2009-04
Conductor cross section/conductor type/tractive force setpoint/actual value6 mm² / solid / > 80 N
6 mm² / flexible / > 80 N
25 mm² / stranded / > 135 N
16 mm² / flexible / > 100 N
Electrical tests
Temperature-rise test
SpecificationIEC 60947-7-1:2009-04
Requirement temperature-rise testIncrease in temperature ≤ 45 K
Short-time withstand current
SpecificationIEC 60947-7-1:2009-04
Air clearances and creepage distances 1. Insulation coordination
Applicationwithout spacer plate
SpecificationIEC 60947-7-1:2009-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)500 V
Rated surge voltage (III/3)6 kV
minimum clearance value - non-homogenous field (III/3)5.5 mm
minimum creepage distance (III/3)6.3 mm
Air clearances and creepage distances 2. Insulation coordination
Applicationwith spacer plate
SpecificationIEC 60947-7-1:2009-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)800 V
Rated surge voltage (III/3)8 kV
minimum clearance value - non-homogenous field (III/3)8 mm
minimum creepage distance (III/3)10 mm
Environmental and real-life conditions
Glow-wire test
SpecificationIEC 60695-2-11:2000-10
Temperature960 °C
Time of exposure30 s
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (Depending on the current carrying capacity/derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard

ETIM for 3073348 Terminal blocks (EC001283)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 6 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 6 mm²
Connectable conductor cross section solid-core (EF007337) 6 mm²
Connectable conductor cross section multi-wired (EF007343) 2.5 mm²
Rated voltage (EF000228) 800 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of poles (EF001391) 1
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Colour (EF000007) Grey
