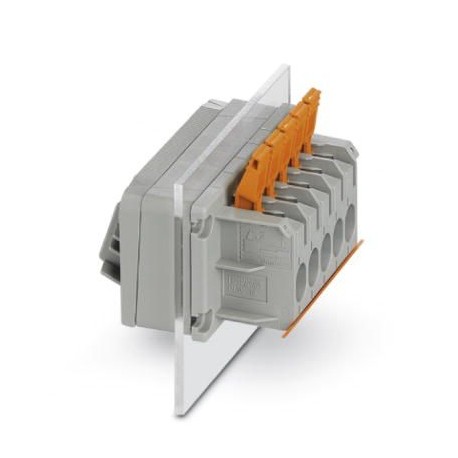

PLW 16-6/ 4-10 1821070 PHOENIX CONTACT Panel feed-through terminal block

PLW 16-6/ 4-10

1821070

PHOENIX CONTACT

15 Pcs.

Panel feed-through terminal block Terminal block, connection type: Push-lock connection, Push-in spring connection, number of poles: 4, load current: 41 A, cross-section: 2.5 mm² - 10 mm², connection direction of the conductor with respect to the plug direction: 0 °, width: 64.4 mm

Automation > Panel feed-through terminal block
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1821070
Packing unit15 pc
Minimum order quantity15 pc
Catalog pagePage 605 (C-1-2013)
GTIN4046356788205
Weight per Piece (excluding packing)89.580 g
Custom tariff number85369010
Country of originSK (Slovakia)

General

Number of levels1
Number of connections8
Nominal cross section16 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Maximum load current41 A
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Connection in acc. with standardIEC 60947-7-1
Nominal current IN41 A
Maximum load current41 A
Nominal voltage UN1000 V
Open side panelNo
Number of positions4

Dimensions

Width64.4 mm
Pitch10 mm
Plate thickness19.26 mm

Connection data

Connection sideoutside
Connection methodPush-lock spring connection
Conductor cross section solid min.2.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.2.5 mm²
Conductor cross section flexible max.25 mm²
Conductor cross section AWG min.14
Conductor cross section AWG max.4
Conductor cross section flexible, with ferrule without plastic sleeve min.2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.16 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.16 mm²
Stripping length18 mm
Connection sideinside
Connection methodPush-in connection
Conductor cross section flexible min.1.5 mm²
Conductor cross section flexible max.6 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.6 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.6 mm²
Stripping length15 mm

Standards and Regulations

Connection in acc. with standardIEC 60947-7-1
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1821070 Terminal blocks (EC001283)
Feature Name Feature Value
Type of electrical connection 2 (EF002527) Other
Number of poles (EF001391) 4
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Colour (EF000007) Grey

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
