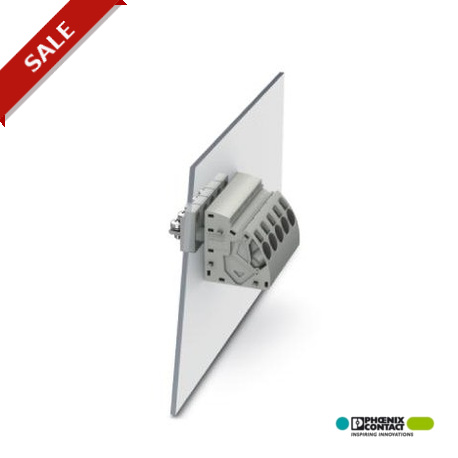

PWO 16-POT 1705653 PHOENIX CONTACT Panel feed-through terminal block, Connection method: Push-in connection,..

PWO 16-POT

1705653

PHOENIX CONTACT

50 Pcs.

Panel feed-through terminal block, Connection method: Push-in connection, Cable lug connection, Load current : 76 A, Cross section: 1.5 mm² Wall terminal block, connection type: Push-in spring connection, Terminal connection, number of poles: 1, charging current: 76 A, cross-section: 1.5 mm² - 16 mm², conductor connection direction with respect to the plug direction: 45 °, width: 12 mm

Automation > Panel feed-through terminal block
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General

Number of levels1
Number of connections2
Nominal cross section16 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0

General

Maximum load current76 A
Rated surge voltage8 kV
Pollution degree3
Overvoltage categoryIII
Insulating material groupI
Connection in acc. with standardIEC 60947-7-1
Nominal current IN76 A
Maximum load current76 A
Nominal voltage UN1000 V
Open side panelnein
Number of positions1

Dimensions

Width12 mm
Plate thickness1 mm ... 6 mm

Connection data

Connection sideOutside
Connection methodPush-in connection
Conductor cross section solid min.1.5 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.1.5 mm²
Conductor cross section flexible max.16 mm²
Conductor cross section AWG min.14
Conductor cross section AWG max.4
Conductor cross section flexible, with ferrule without plastic sleeve min.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.16 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.16 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.4 mm²
Stripping length18 mm
Connection sideInside
Connection methodCable lug connection

ETIM for 1705653 Terminal blocks (EC001283)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 1.5 mm²
Connectable conductor cross section solid-core (EF007337) 1.5 mm²
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Other
Number of poles (EF001391) 1
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Colour (EF000007) Grey

Product Datasheet
