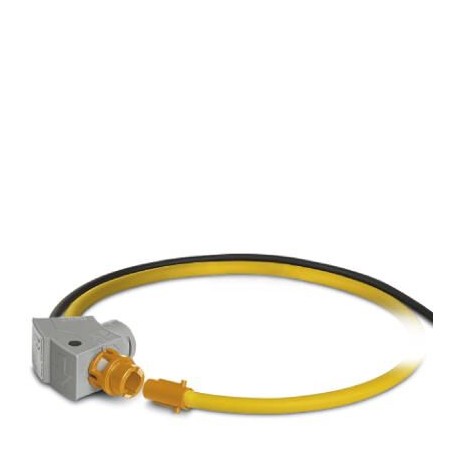

PHOENIX CONTACT PACT RCP-D140 PACT RCP-D140 2904891 PHOENIX CONTACT 450 mm long Rogowski coil. The measuring coil diameter when installed .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PACT RCP-D140 2904891 PHOENIX CONTACT 450 mm long Rogowski coil. The measuring coil diameter when installed ..

PACT RCP-D140

2904891

PHOENIX CONTACT

1 Pcs.

450 mm long Rogowski coil. The measuring coil diameter when installed is 140 mm. The Rogowski coil is used for AC current measurement for busbars and power lines. Rogowski coil with a length of 450 mm. The diameter of the measuring coil in installed state is 140 mm. The Rogowski coil is used for the measurement of AC current from busbars and high-voltage lines.

Automation > Accessories/spare parts for low-voltage switch technology
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2904891
Packing unit1 pc
Catalog pagePage 219 (C-5-2019)
GTIN4046356898188
Weight per Piece (excluding packing)180.000 g
Custom tariff number90309000
Country of originIT (Italy)

Measuring coil input data

Frequency measuring range40 Hz ... 20000 Hz
Position error< 1 %
Linearity error0.1 %
Back to top

Measuring coil signal output

Output signal (at 50 Hz)100 mV (no load, at 1,000 A)
Output voltage (in no-load operation)VOUT= M * dI/dt
Output voltage (sinusoidal, in no-load operation)100 mV (VOUT= 2 * π * M * f * I (M = 0.318 μH; example: At 50 Hz; I = 1,000 A))
Back to top

General data, measuring coil

Length of measuring coil450 mm
Diameter of measuring coil8.3 mm ±0.2 mm
Length of signal cable3000 mm
Conductor structure signal line2x 0.22 mm (Signal (tinned))
1x 0.22 mm (Shielding (tinned))
Coil materialElastollan
Housing materialPC
Insulationdouble insulation
Rated insulation voltage1000 V AC (rms CAT III)
600 V AC (rms CAT IV)
Test voltage10.45 kV (DC / 1 min.)
Basic accuracy
UL, USA/CanadaUL 61010 Recognized
Back to top

General data

Standards/regulationsIEC 61010-1
IEC 61010-2-032
Back to top

Ambient conditions

Ambient temperature (operation)-30 °C ... 80 °C (Measuring coil)
Ambient temperature (storage/transport)-40 °C ... 80 °C (Measuring coil)
Maximum altitude< 2000 m
Measuring coil degree of protectionIP67 (not assessed by UL)
Back to top

Standards and Regulations

Standards/regulationsIEC 61010-1
IEC 61010-2-032
UL, USA/CanadaUL 61010 Recognized
Back to top

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 10.0.127219290
eCl@ss 4.027378000
eCl@ss 4.127378000
eCl@ss 5.027379100
eCl@ss 5.127379100
eCl@ss 6.027379200
eCl@ss 7.027379201
eCl@ss 8.027219290
eCl@ss 9.027219290
Back to top

ETIM

ETIM 4.0EC002048
ETIM 5.0EC002498
ETIM 6.0EC002498
ETIM 7.0EC002498
Back to top

UNSPSC

UNSPSC 13.239121421
UNSPSC 19.039121421
Back to top

ETIM for 2904891 Low-voltage industrial controls and switchgear (EC002498)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Other
Accessory (EF013236) Yes
Spare part (EF013237) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
