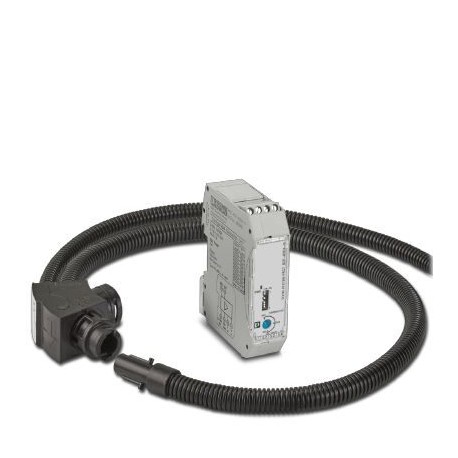

PHOENIX CONTACT PACT RCP-4000A-1A-D140-3M-UV PACT RCP-4000A-1A-D140-3M-UV 1058044 PHOENIX CONTACT Set consisting of one 1 A measuring transducer and one .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PACT RCP-4000A-1A-D140-3M-UV 1058044 PHOENIX CONTACT Set consisting of one 1 A measuring transducer and one ..

PACT RCP-4000A-1A-D140-3M-UV

1058044

PHOENIX CONTACT

1 Pcs.

Set consisting of one 1 A measuring transducer and one UV-resistant Rogowski coil with signal line. Length of Rogowski coil: 600 mm, diameter: 140 mm. Length of signal line: 3 m. The Rogowski coil measures the AC current of busbars and power lines. Set consisting of a 1 A measurement transducer and a Rogowski coil resistant to ultraviolet rays with signal line. Rogowski coil length: 450 mm, diameter: 140 mm. Signal line length: 3 m. The coil measures AC current from busbars and high-voltage lines.

Automation > Current transformer
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1058044
Packing unit1
Catalog pagePage 224 (C-5-2019)
GTIN4055626702261
Custom tariff number85437090

Dimensions

Width22.5 mm
Height85 mm
Depth70.4 mm
Back to top

Ambient conditions

Ambient temperature (operation)-30 °C ... 80 °C (Measuring coil)
-20 °C ... 70 °C (Measuring transducer)
Ambient temperature (storage/transport)-40 °C ... 80 °C (Measuring coil)
-25 °C ... 85 °C (Measuring transducer)
Maximum altitude< 2000 m
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Measuring coil degree of protectionIP67 (not assessed by UL)
Measuring transducer degree of protectionIP20
Back to top

Measuring transducer supply

Nominal supply voltage24 V DC -20 % ... +25 %
Nominal supply voltage range19.2 V DC ... 30 V DC
Max. current consumption190 mA
Power consumption4 W
Back to top

Measuring coil input data

Frequency measuring range40 Hz ... 20000 Hz
Position error< 1 %
Linearity error0.1 %
Back to top

Measuring transducer input data

Measuring ranges (current)100 A 250 A 400 A 630 A 1000 A 1500 A 2000 A 4000 A
Configurable/programmableVia DIP switches
Phase angle< 1 °
Rated power1.5 VA
Max. distances for copper cables at PN max32 m (0.75 mm² (AWG 20))
64 m (1.5 mm² (AWG 16))
107 m (2.5 mm² (AWG 14))
Back to top

Measuring transducer signal input

Input signal (at 50 Hz)100 mV (1000 A)
Input impedance27 kΩ (smallest measuring range)
Back to top

Measuring coil signal output

Output signal (at 50 Hz)100 mV (no load, at 1,000 A)
Output voltage (in no-load operation)VOUT= M * dI/dt
Output voltage (sinusoidal, in no-load operation)100 mV (VOUT= 2 * π * M * f * I (M = 0.318 μH; example: At 50 Hz; I = 1,000 A))
Back to top

Measuring transducer signal output

Current output signal0 A AC ... 1 A
Load0 Ω ... 1.5 Ω
Back to top

General data, measuring coil

Length of measuring coil450 mm
Diameter of measuring coil8.3 mm ±0.2 mm
Length of signal cable3000 mm
Conductor structure signal line2x 0.22 mm (Signal (tinned))
1x 0.22 mm (Shielding (tinned))
Coil materialElastollan
Housing materialPC
Insulationdouble insulation
Rated insulation voltage1000 V AC (rms CAT III)
600 V AC (rms CAT IV)
Test voltage10.45 kV (DC / 1 min.)
Basic accuracy
Back to top

General data for measuring transducer

Linearity error< 0.5 % (From the range end value)
Maximum transmission error≤ 0.5 % (From the range end value)
Frequency range45 Hz ... 65 Hz
Max. detectable harmonics< 2 kHz
Current consumption< 190 mA (at 19.2 V)
Housing materialPolyamide
Test voltage1.5 kV AC (Supply/input and output: 50 Hz, 1 min)
Operating voltage displayGreen LED
UL, USA/CanadaUL 508 Listed
Back to top

General data

Standards/regulationsIEC 61010-1
IEC 61010-2-032
Insulationdouble insulation
Temperature coefficients0.005 %/K (+10°C ... +70°C; both components have the same ambient temperature)
0.07 %/K (-20°C ... +10°C; both components have the same ambient temperature)
Typical measuring error< 1 %
Back to top

Connection data

Connection nameMeasuring transducer side
Connection methodScrew connection
Stripping length7 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 14
Torque0.5 Nm ... 0.6 Nm
Back to top

Standards and Regulations

Standards/regulationsIEC 61010-1
IEC 61010-2-032
Insulationdouble insulation
Pollution degree2
Overvoltage categoryIII (1000 V, to neutral conductor)
IV (600 V, to neutral conductor)
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
