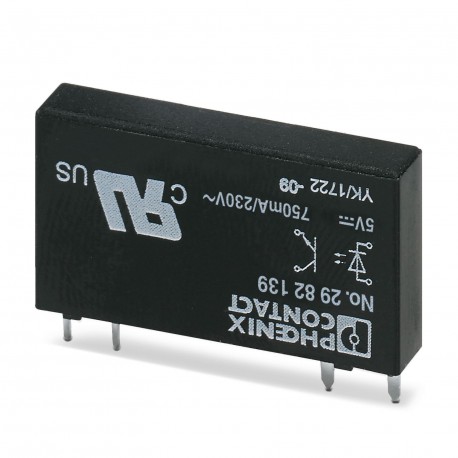

OPT- 5DC/230AC/ 1 2982139 PHOENIX CONTACT Miniature solid-state relay
OPT-5DC/230AC/ 1
2982139
PHOENIX CONTACT
10 Pcs.
Miniature solid-state relay
Plug-in miniature solid-state relay, power solid-state relay, 1 closing contact, input: 5 V DC, output: 24-253 V AC/ 0.75 A
Automation > Optocoupler
Industrial Relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Single solid-state relay |
| Operating mode | 100% operating factor |
| Data management status | |
| Date of last data management | 07.10.2024 |
| Article revision | 00 |
| Insulation characteristics: Standards/regulations | |
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Standards/regulations | |
| Rated insulation voltage | 260 V AC |
| Rated surge voltage | 4 kV (Basic insulation) |
Input data
| Nominal input voltage UN | 5 V DC |
| Input voltage range in reference to UN | 0.8 ... 1.2 |
| Input voltage range | 4 V DC ... 6 V DC |
| Switching threshold "0" signal in reference to UN | 0.2 |
| Switching threshold "1" signal in reference to UN | 0.6 |
| Typical input current at UN | 7 mA |
| Typical response time | 10 ms |
| Typical turn-off time | 10 ms |
| Transmission frequency | 10 Hz |
Output data
| Contact switching type | 1 N/O contact |
| Design of digital output | electronic |
| Output voltage range | 24 V AC ... 253 V AC |
| Limiting continuous current | 0.75 A (see derating curve) |
| Maximum inrush current | 30 A (10 ms) |
| Min. load current | 10 mA |
| Leakage current | < 1 mA (in off state) |
| Phase angle cos phi min | 0.5 |
| Max. load value | 4.5 A2s |
| Voltage drop at max. limiting continuous current | < 1 V |
| Output circuit | 2-conductor floating, zero voltage switch |
| Protective circuit | RCV circuit; RCV circuit |
Dimensions
| Dimensional drawing |  |
| Width | 5 mm |
| Height | 28 mm |
| Depth | 15 mm |
Material specifications
| Color | black (RAL 9005) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | RT III |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 75 °C |
Approvals
| Corrosive gas test | |
| Identification | ISA-S71.04. G3 Harsh Group |
| EN 60068-2-60 | |
Standards and regulations
| Standards/regulations | |
| Standards/regulations | IEC 60664 |
| EN 50178 | |
Mounting
| Assembly note | in rows with zero spacing |
| Mounting position | any |
| Feature Name | Feature Value |
|---|---|
| Input voltage (EF003840) | 4 V |
| Type of voltage (input voltage) (EF003033) | DC |
| Output voltage (EF003933) | 24 V |
| Type of output voltage (EF008222) | AC |
| Rated operation current Ie (EF001443) | 0.75 A |
| Type of digital output (EF003601) | Electronic |
| With LED indication (EF005950) | No |
