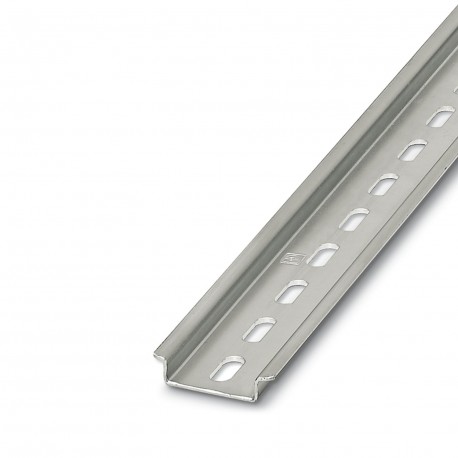

PHOENIX CONTACT NS 35/ 7,5 PERF 1155MM NS 35/ 7,5 PERF 1155MM 1207666 PHOENIX CONTACT DIN rail perforated View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NS 35/ 7,5 PERF 1155MM 1207666 PHOENIX CONTACT DIN rail perforated

NS 35/ 7,5 PERF 1155MM

1207666

PHOENIX CONTACT

10 Pcs.

DIN rail perforated Symmetrical perforated rail, according to EN 60715, material: Steel, galvanized, thick layer passivation, Standard profile, color: silver DIN rail perforated, acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver

Automation > Mounting rail
CABINET add-on

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeDIN rail
Data management status
Article revision06
Dimensions
Dimensional drawingllofdasdsx.jpg
Width35 mm
Hole width15 mm
Hole height6.2 mm
Depth7.5 mm
Length1155 mm
Drill hole spacing25 mm
Material specifications
Colorsilver-colored
MaterialSteel
Coatinggalvanized, passivated with a thick layer
Standards and regulations
Connection in acc. with standardIEC / EN
Testsacc. to EN 60715

ETIM for 1207666 Power distribution systems (EC001285)
Feature Name Feature Value
Material (EF002169) Steel
Surface protection (EF000139) Other
Punch shape (EF001457) Long-slot
Drill hole distance centrically (EF002677) 25 mm
Material thickness (EF000386) 1 mm
Length (EF001438) 1155 mm
Height (EF000040) 7.5 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
