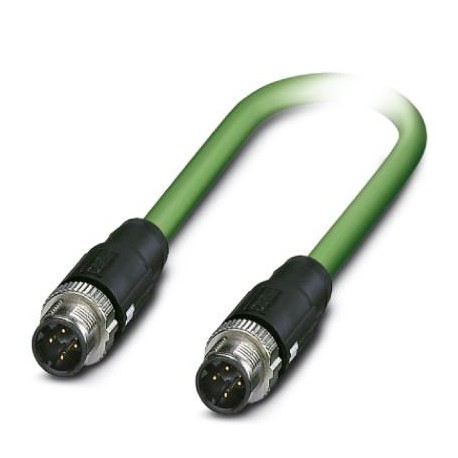

PHOENIX CONTACT NBC-M12MSD/ 5,0-93B/M12MSD NBC-M12MSD/ 5,0-93B/M12MSD 1407526 PHOENIX CONTACT Network cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-M12MSD/ 5,0-93B/M12MSD 1407526 PHOENIX CONTACT Network cable

NBC-M12MSD/ 5,0-93B/M12MSD

1407526

PHOENIX CONTACT

1 Pcs.

Network cable Network cable, PROFINET CAT5 (100 MBit/s), EtherCAT® CAT5 (100 MBit/s), 4-pole, shielded (Advanced Shielding Technology), M12 straight connector, encoding: D / IP67, a M12 straight connector, encoding: D / IP67, cable length: 5 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1407526
Packing unit1 pc
Catalog pagePage 399 (C-2-2017)
GTIN4046356778312
Weight per Piece (excluding packing)355.300 g
Custom tariff number85444290
Country of originPL (Poland)

Dimensions

Length of cable5 m

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 90 °C (M12 connector)

General data

NoteThis product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling)
Further products with variable cable type and variable cable length can be found in the accessories section
Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions4
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
EtherCAT®CAT5 (IEC 11801), 100 Mbps
Standards/regulationsM12 connector IEC 61076-2-101
Contact materialCuSn
Contact carrier materialTPU GF
Contact surface materialNi/Au

Characteristics head 1

Head typePlug straight M12 SPEEDCON / IP67
No. of positions (pin connector pattern)4
CodingD (Data)
Colorblack
Material (component)CuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Insulation resistance≥ 100 MΩ
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm
Ambient temperature (operation)-25 °C ... 90 °C

Characteristics head 2

Head typePlug straight M12 SPEEDCON / IP67
No. of positions (pin connector pattern)4
CodingD (Data)
Colorblack
black
Material (component)CuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Insulation resistance≥ 100 MΩ
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm
Ambient temperature (operation)-25 °C ... 90 °C

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101

Cable

Cable typePROFINET PVC stranded CAT5
Cable type (abbreviation)93B
UL AWM style21694
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
EtherCAT®CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/7; SF/TQ
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulation1.55 mm
Wire colorsWhite, yellow, blue, orange
Overall twistStar quad
ShieldingAluminum-coated foil, tinned copper braided shield
Optical shield covering85 %
External sheath, colorgreen RAL 6018
Outer sheath thicknessapprox. 0.9 mm
External cable diameter D6.5 mm ±0.2 mm
Minimum bending radius, fixed installation3 x D
Minimum bending radius, flexible installation7 x D
Cable weight67 kg/km
Outer sheath, materialPVC
Material, inner sheathPVC
Material conductor insulationPE
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 120.00 Ω/km
Wave impedance100 Ω ±15 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)80 dB (with 1 MHz)
76 dB (at 4 МHz)
70 dB (at 10 MHz)
65 dB (at 16 MHz)
63 dB (at 20 МHz)
60 dB (at 31.25 МHz)
55 dB (at 62.5 МHz)
50 dB (at 100 MHz)
Attenuation2.1 dB (with 1 MHz)
4 dB (at 4 МHz)
6.3 dB (at 10 MHz)
8 dB (at 16 MHz)
9 dB (at 20 МHz)
11.4 dB (at 31.25 МHz)
16.5 dB (at 62.5 МHz)
21.3 dB (at 100 MHz)
Signal speed0.66 c
Signal runtime5.3 ns/m
Coupling resistance≤ 20.00 mΩ/m (at 10 MHz)
Nominal voltage, cable600 V
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000 V (50 Hz, 1 min.)
Flame resistanceaccording to UL 1685 (CSA FT 4)
Resistance to oilResistant to oil to a limited extent
Other resistanceUV resistant According to UL 1581, Section 1200
Ambient temperature (operation)-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-50 °C ... 70 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1407526 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Other
Cable length (EF000536) 5 m
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -40 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
