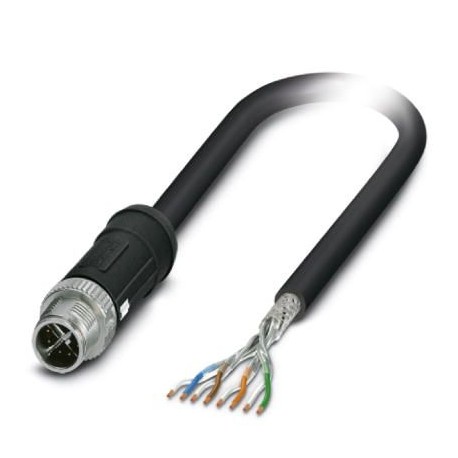

PHOENIX CONTACT NBC-MSX/10,0-94S SCO RAIL NBC-MSX/10,0-94S SCO RAIL 1415601 PHOENIX CONTACT Network cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-MSX/10,0-94S SCO RAIL 1415601 PHOENIX CONTACT Network cable

NBC-MSX/10,0-94S SCO RAIL

1415601

PHOENIX CONTACT

1 Pcs.

Network cable Network cable, CAT6A Ethernet (10 GBit/s), 8-pole halogen-free, shielded, M12 straight connector, coding: X SPEEDCON / IP67, to free cable end, cable length: 10 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1415601
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 408 (C-2-2017)
GTIN4055626047683
Weight per Piece (excluding packing)602.500 g
Custom tariff number85444210
Country of originPL (Poland)

Dimensions

Length of cable10 m

Ambient conditions

Degree of protectionIP65
IP67
Ambient temperature (operation)-25 °C ... 90 °C (M12 connector)

General data

Rated current at 40°C0.5 A
Rated voltage48 V AC
60 V DC
Number of positions8
Signal type/categoryEthernet CAT6A, 10 Gbps
Standards/regulationsM12 connector IEC 61076-2-109
Shock, vibration EN 50155

Characteristics head 1

Head typePlug straight M12 SPEEDCON / IP67
No. of positions (pin connector pattern)8
CodingX (Data)
Colorblack
Material (component)CuZn (Contact)
Ni/Au (Contact surface)
TPU (Contact carriers)
PA 6.6 (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Standards/regulations materialPA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3)
Insulation resistance≥ 100 MΩ
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm
Ambient temperature (operation)-25 °C ... 90 °C

Characteristics head 2

Head typefree cable end
Colorblack
Stripping length of the sheath (free conductor end)0.5 mm

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-109
Standard designationShock, vibration
Standards/regulationsEN 50155

Cable

Cable typeEthernet for rail applications
Cable type (abbreviation)94S
Signal type/categoryEthernet CAT7, 10 Gbps
Cable structure4x2xAWG26/7; S/FTP
Conductor cross section4x 2x 0.14 mm²
AWG signal line26
Conductor structure signal line7x 0.16 mm
Core diameter including insulation1.05 mm ±0.1 mm
Wire colorsWhite-blue, white-orange, white-green, white-brown
Twisted pairs2 cores to the pair
Type of pair shieldingAluminum-lined polyester foil
Overall twist4 pairs, twisted
ShieldingTinned copper braided shield
External sheath, colorblack
External cable diameter D6.6 mm ±0.2 mm
Minimum bending radius, fixed installation6 x D
Tensile strength GRP≤ 60 N (temporary)
≤ 15 N (Permanent)
Cable weight59 kg/km
Copper weight28 kg/km
Outer sheath, materialPE-X
Material conductor insulationCell PE
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 5 GΩ*km
Conductor resistance≤ 145 Ω/km
Working capacitance44 nF (per kilometer)
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)100 dB (with 1 MHz)
99 dB (at 10 MHz)
95 dB (at 100 MHz)
92 dB (at 200 MHz)
90 dB (at 250 MHz)
83 dB (at 500 MHz)
81 dB (at 600 MHz)
80 dB (at 700 MHz)
77 dB (at 800 MHz)
75 dB (at 900 MHz)
74 dB (at 1000 MHz)
72 dB (at 1100 MHz)
70 dB (at 1200 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)97 dB (with 1 MHz)
96 dB (at 10 MHz)
92 dB (at 100 MHz)
89 dB (at 200 MHz)
87 dB (at 250 MHz)
80 dB (at 500 MHz)
78 dB (at 600 MHz)
77 dB (at 700 MHz)
74 dB (at 800 MHz)
72 dB (at 900 MHz)
71 dB (at 1000 MHz)
69 dB (at 1100 MHz)
67 dB (at 1200 MHz)
Attenuation0.25 dB (with 1 MHz)
0.76 dB (at 10 MHz)
2.49 dB (at 100 MHz)
3.69 dB (at 200 MHz)
4.18 dB (at 250 MHz)
5.6 dB (at 500 MHz)
6.74 dB (at 600 MHz)
7.32 dB (at 700 MHz)
7.89 dB (at 800 MHz)
8.5 dB (at 900 MHz)
9.11 dB (at 1000 MHz)
9.5 dB (at 1100 MHz)
9.9 dB (at 1200 MHz)
Return loss (RL)24 dB (with 1 MHz)
33.9 dB (at 10 MHz)
38.3 dB (at 100 MHz)
35.3 dB (at 200 MHz)
32.9 dB (at 250 MHz)
29.7 dB (at 500 MHz)
30.6 dB (at 600 MHz)
31 dB (at 700 MHz)
26.7 dB (at 800 MHz)
28.6 dB (at 900 MHz)
27.5 dB (at 1000 MHz)
26.9 dB (at 1100 MHz)
26.3 dB (at 1200 MHz)
Crosstalk attenuation (ACR)100 dB (with 1 MHz)
99 dB (at 10 MHz)
93 dB (at 100 MHz)
88 dB (at 200 MHz)
86 dB (at 250 MHz)
78 dB (at 500 MHz)
74 dB (at 600 MHz)
72 dB (at 700 MHz)
69 dB (at 800 MHz)
67 dB (at 900 MHz)
65 dB (at 1000 MHz)
63 dB (at 1100 MHz)
61 dB (at 1200 MHz)
Power-summated crosstalk attenuation (PS-ACR)97 dB (with 1 MHz)
96 dB (at 10 MHz)
90 dB (at 100 MHz)
85 dB (at 200 MHz)
83 dB (at 250 MHz)
75 dB (at 500 MHz)
71 dB (at 600 MHz)
69 dB (at 700 MHz)
66 dB (at 800 MHz)
64 dB (at 900 MHz)
62 dB (at 1000 MHz)
60 dB (at 1100 MHz)
58 dB (at 1200 MHz)
Signal speed0.78 c
Signal runtime4.4 ns/m
Shield attenuation60 dB (up to 1000 MHz)
Interference suppression90 dB (up to 1000 MHz)
Coupling resistance5.00 mΩ/m (at 10 MHz)
Nominal voltage, cable125 V AC (Uo)
Test voltage Core/Core1000 V AC (50 Hz, 1 min.)
Test voltage Core/Shield1000 V AC (50 Hz, 1 min.)
Fire protection in rail vehiclesBS 6853 (Internal cable Ia, Ib, II/external cable Ia, Ib, II)
DIN 5510-2 (Fire protection level 1, 2, 3, 4)
EN 45545-2
EN 50306-4
NF F16-101 (Classification C/F1)
NF F16-101 (Internal cable A1, A2, B/external cable A1, A2, B)
NFPA 130
PN-K-02511 (Class A)
UIC 564-2 (Class A)
Flame resistanceaccording to EN 60332-1-2
EN 60332-3-25
according to ISO 14572 5.21 (UN ECE-R 118.01)
Halogen-freeAccording to EN 50267-2-1
according to EN 60684-2
Resistance to oilaccording to EN 60684-2, 72 h at 100 °C, IRM 902
Other resistanceResistant to fuel according to EN 60684-2, 72 h at 100 °C, IRM 903
Resistant to ozone according to EN 50306-4, 72 h at 40 °C, procedure B, volume concentration 200 x 10-6
Concentration of fumesEN 61034-2
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1415601 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Cable length (EF000536) 10 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Black
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Rated current In (EF008250) 0.5 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
