PHOENIX CONTACT NBC-MS/ 5,0-94B/FS SCO NBC-MS/ 5,0-94B/FS SCO 1407465 PHOENIX CONTACT Network cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-MS/ 5,0-94B/FS SCO 1407465 PHOENIX CONTACT Network cable

NBC-MS/ 5,0-94B/FS SCO

1407465

PHOENIX CONTACT

1 Pcs.

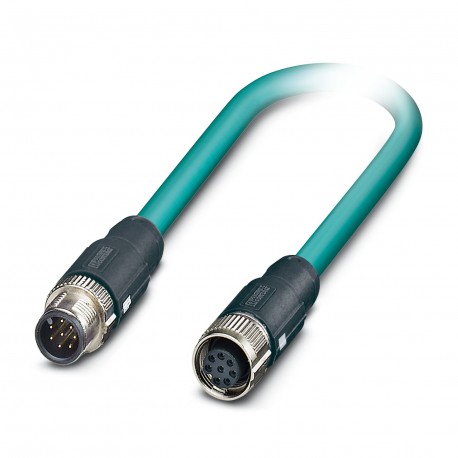

Network cable Network cable, CAT5 Ethernet (1 GBit/s), 8-pole, shielded, M12 straight connector, encoding: A SPEEDCON / IP67, to M12 straight female, encoding: A SPEEDCON / IP67, cable length: 5 m Network cable, Ethernet CAT5 (1 Gbps), 8-position, PUR halogen-free, water blue RAL 5021, shielded, Plug straight M12 SPEEDCON, coding: A / IP67, on Socket straight M12 SPEEDCON, coding: A / IP67, cable length: 5 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralFurther products with variable cable type and variable cable length can be found in the accessories section
Product properties
Product typeData cable preassembled
ApplicationStandard
Sensor typeEthernet
Number of positions8
No. of cable outlets1
Shieldedyes
CodingA
Interfaces
Bus systemEthernet
Signal type/categoryEthernet CAT5 (based on IEC 11801), 1 Gbps
Signaling
Status displayno
Status display presentNo
Electrical properties
Nominal voltage UN48 V AC
60 V DC
Nominal current IN2 A
Transmission mediumCopper
Transmission characteristics (category)CAT5 (IEC 11801:2002)
Material specifications
Seal materialNBR
Connector
Connection 1
TypePlug straight M12 SPEEDCON / IP67
Number of positions8
Locking typeSPEEDCON
Coding typeA (Standard)
Handle colorblack
MaterialCuZn (Contact)
Ni/Au (Contact surface)
TPU GF (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip body)
Zinc die-cast, nickel-plated (Screw connection)
Insertion/withdrawal cycles≥ 100
Insulation resistance≥ 100 MΩ
Tightening torque0.4 Nm
Degree of protectionIP67
Ambient temperature (operation)-25 °C ... 90 °C
Connection 2
TypeSocket straight M12 SPEEDCON / IP67
Number of positions8
Locking typeSPEEDCON
Coding typeA (Standard)
Handle colorblack
MaterialCuZn (Contact)
Ni/Au (Contact surface)
TPU GF (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip body)
Zinc die-cast, nickel-plated (Screw connection)
Insertion/withdrawal cycles≥ 100
Insulation resistance≥ 100 MΩ
Tightening torque0.4 Nm
Degree of protectionIP67
Ambient temperature (operation)-25 °C ... 90 °C
Cable/line
Cable length5 m
Ethernet flexible CAT5, 4-pair [94B]
Dimensional drawingschbwmdziw.jpg
Cable weight47 kg/km
UL AWM Style20963 (80°C/30 V)
Number of positions8
Shieldedyes
Cable typeEthernet flexible CAT5, 4-pair [94B]
Conductor structure4x2xAWG26/7, SF/UTP
Signal runtime5.3 ns/m
Conductor structure signal line7x 0.16 mm
AWG signal line26
Conductor cross section4x 2x 0.14 mm²
Wire diameter incl. insulation0.96 mm
External cable diameter6.40 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorwater blue RAL 5021
Conductor materialBare Cu litz wires
Material wire insulationFoamed PE
Single wire, colorwhite/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Thickness, outer sheath1.05 mm
Twisted pairs2 cores to the pair
Overall twist4 pairs for core
Optical shield covering70 %
Insulation resistance≥ 5 GΩ*km
Coupling resistance≤ 100.00 mΩ/m (at 10 MHz)
Loop resistance≤ 290.00 Ω/km
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Cable capacity48 nF/km (at 1 kHz)
Nominal voltage, cable≤ 100 V
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700.00 V (50 Hz, 1 min.)
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Smallest bending radius, fixed installation26 mm
Smallest bending radius, movable installation52 mm
Tensile strength≤ 100 N
Near end crosstalk attenuation (NEXT)71.3 dB (with 1 MHz)
62.3 dB (at 4 МHz)
56.3 dB (at 10 MHz)
53.2 dB (at 16 MHz)
51.8 dB (at 20 МHz)
48.9 dB (at 31.25 МHz)
44.4 dB (at 62.5 МHz)
41.3 dB (at 100 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)62.3 dB (with 1 MHz)
53.3 dB (at 4 МHz)
47.3 dB (at 10 MHz)
44.2 dB (at 16 MHz)
42.8 dB (at 20 МHz)
39.9 dB (at 31.25 МHz)
35.4 dB (at 62.5 МHz)
32.3 dB (at 100 MHz)
Return attenuation (RL)23 dB (at 4 МHz)
24.1 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
23.6 dB (at 31.25 МHz)
21.5 dB (at 62.5 МHz)
20.1 dB (at 100 MHz)
Shield attenuation3.2 dB (with 1 MHz)
6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.6 dB (at 20 МHz)
17.1 dB (at 31.25 МHz)
24.8 dB (at 62.5 МHz)
32 dB (at 100 MHz)
Halogen-freeaccording to IEC 60754-1
Flame resistanceaccording to IEC 60332-1-2
Resistance to oilin accordance with EN 60811-2-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (Cable, flexible installation)
Ambient temperature (installation)-20 °C ... 80 °C
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
IP65/IP67
Ambient temperature (operation)-25 °C ... 90 °C (M12 connector)
Standards and regulations
M12
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

ETIM for 1407465 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Female (bus)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 5 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -20 °C
Rated current In (EF008250) 2 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
