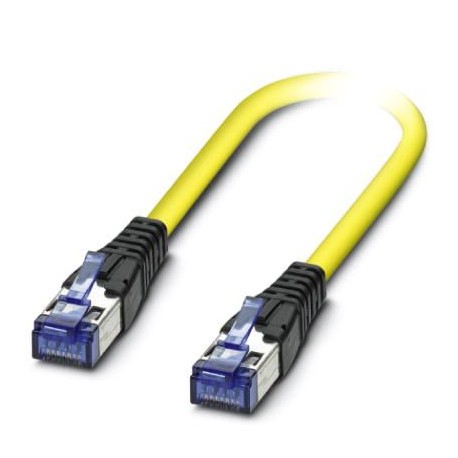

NBC-R4AC1/2,0-94G/R4AC1-YE 1421171 PHOENIX CONTACT Patch cable
NBC-R4AC1/2,0-94G/R4AC1-YE
1421171
PHOENIX CONTACT
1 Pcs.
Patch cable
Patch cable, protection rating: IP20, cable length: 2 m, number of poles: 8, 10 GBit/s, CAT6to
Automation > Patch cord copper (twisted pair)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1421171 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626254821 |
| Weight per Piece (excluding packing) | 94.000 g |
| Custom tariff number | 85444210 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 8 |
|---|---|
| Shielded | yes |
| Length of cable | 2.00 m |
| Degree of protection | IP20 |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C (RJ45 connector) |
|---|---|
| -25 °C ... 75 °C (cable) |
Electrical characteristics
| Number of positions | 8 |
|---|---|
| Nominal voltage UN | 48 V |
| Nominal current IN | 0.5 A |
| GRP transmission properties | CAT6A |
| Transmission speed | 10 Gbps (500 MHz) |
| Rated voltage (III/3) | 72 V (DC) |
| Shielded | yes |
|---|---|
| Outer sheath, material | PUR |
| External sheath, color | yellow |
| Conductor structure signal line | 6.00 mm +0.2 mm -0.1 mm |
| Diameter | 6.00 mm |
| Tolerance | +0.2 mm -0.1 mm |
| AWG signal line | 26 |
| Shielding | S/FTP |
| Insulation resistance | 2000 MΩ*km (500 V) |
| 2000 MΩ*km | |
| Additional text | 500 V |
| Coupling resistance | 30.00 mΩ/m (30 MHz) |
| 30.00 mΩ/m | |
| Additional text | 30 MHz |
| Test voltage | 1000 V DC (1 minute) |
| Voltage | 1000 V DC |
| Additional text | 1 minute |
| Material wire insulation | PE |
| PE | |
| Fixed cable length | 2.00 m |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
