View larger
Images are for illustrative purposes only. Please refer to data sheet for details

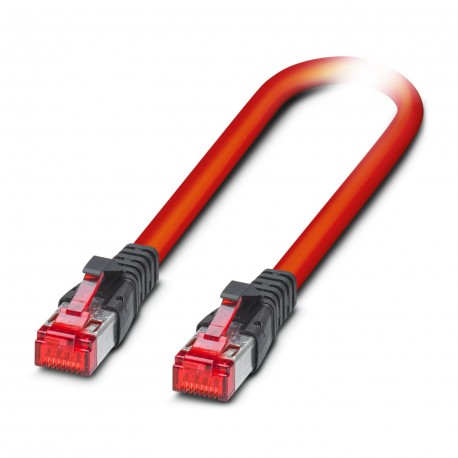

NBC-R4AC1/10,0-94G/R4AC1-RD 1421145 PHOENIX CONTACT Patch cable
NBC-R4AC1/10,0-94G/R4AC1-RD
1421145
PHOENIX CONTACT
1 Pcs.
Patch cable
Patch cable, protection rating: IP20, cable length: 10 m, number of poles: 8, 10 GBit/s, CAT6to
Patch cable, degree of protection: IP20, cable length: 10 m, number of positions: 8, 10 Gbps, CAT6A, Ethernet
Automation > Patch cord copper (twisted pair)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Data cable preassembled |
| Sensor type | Ethernet |
| Number of positions | 8 |
| Shielded | yes |
Signaling
| Status display | no |
| Status display present | No |
Electrical properties
| Rated voltage (III/3) | 72 V (DC) |
| Nominal voltage UN | 48 V |
| Nominal current IN | 0.5 A |
| Transmission medium | Copper |
| Transmission speed | 10 Gbps |
Mechanical properties
| Mechanical data | |
| Insertion force per signal contact | 50.00 N |
| Extraction force per signal contact | 30 N |
Material specifications
| Outer sheath, material | PUR |
Connector
| Connection 2 | |
| Type | Plug straight RJ45 |
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 750 |
| Degree of protection | IP20 |
Cable/line
| Cable length | 10.00 m |
| Cable type | Ethernet 10 Gbit |
| Cable structure | 2x2xAWG26/7, S/FTP |
| Outer sheath, material | PUR |
| External sheath, color | red |
| Conductor structure signal line | 6.00 mm +0.2 mm -0.1 mm |
| AWG signal line | 26 |
| Material wire insulation | PE |
| Shielding | S/FTP |
| Test voltage, cable | 1000 V DC (1 minute) |
| Cable insulation resistance | 2000 MΩ*km (500 V) |
| Coupling resistance | 30.00 mΩ/m (30 MHz) |
| Smallest bending radius, movable installation | 25 mm (without load) |
| Flame resistance | IEC 60332-1 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 60 °C (RJ45 connector) |
| -25 °C ... 75 °C (cable) | |
Standards and regulations
| Flame resistance | IEC 60332-1 |
