View larger
Images are for illustrative purposes only. Please refer to data sheet for details

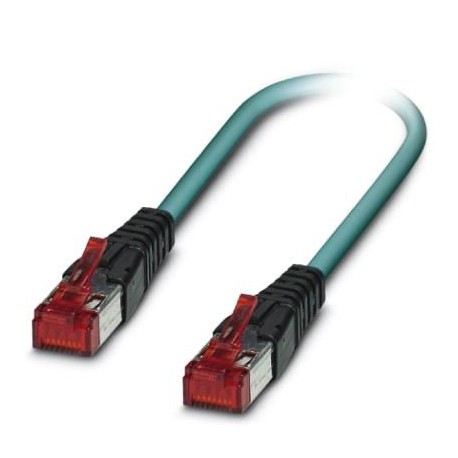

NBC-R4AC1/1,0-94G/R4AC1-BU 1413160 PHOENIX CONTACT Patch cable
NBC-R4AC1/1,0-94G/R4AC1-BU
1413160
PHOENIX CONTACT
1 Pcs.
Patch cable
Patch cable, protection rating: IP20, cable length: 1 m, number of poles: 8, 10 GBit/s, CAT6A, Ethernet
Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1413160 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356989954 |
| Weight per Piece (excluding packing) | 56.000 g |
| Custom tariff number | 85444210 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C ... 70 °C (RJ45 connector) |
General data
| Rated current at 40°C | 0.5 A |
|---|---|
| Rated voltage | 48 V |
| Number of positions | 8 |
| Rated voltage (III/3) | 72 V (DC) |
Cable
| AWG signal line | 26 |
|---|---|
| Conductor structure signal line | 6.00 mm +0.2 mm -0.1 mm |
| Shielding | S/FTP |
| External sheath, color | water blue RAL 5021 |
| Outer sheath, material | PUR |
| Material conductor insulation | PE |
| Insulation resistance | 2000 MΩ*km (500 V) |
| Coupling resistance | 30.00 mΩ/m (30 MHz) |
| Test voltage, cable | 1000 V DC (1 minute) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 8 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | Other |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 1 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | No |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Material of contact surface (EF004020) | Other |
| Rated current In (EF008250) | 0.5 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | Other |
