PHOENIX CONTACT NBC-R4AC1/0,3-94G/R4AC1-BU NBC-R4AC1/0,3-94G/R4AC1-BU 1413158 PHOENIX CONTACT Patch cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

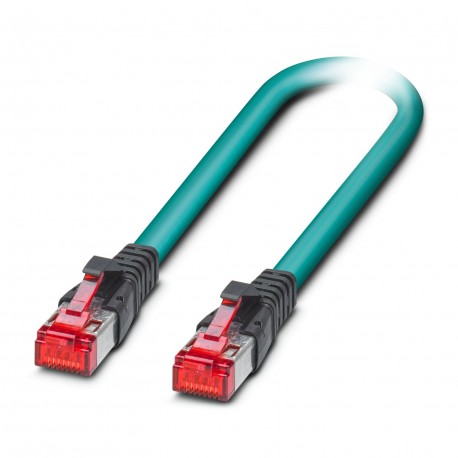

NBC-R4AC1/0,3-94G/R4AC1-BU 1413158 PHOENIX CONTACT Patch cable

NBC-R4AC1/0,3-94G/R4AC1-BU

1413158

PHOENIX CONTACT

1 Pcs.

Patch cable Patch cable, protection rating: IP20, cable length: 0.3 m, number of poles: 8, 10 GBit/s, CAT6A, connection type: Pierce connection, Ethernet Patch cable, degree of protection: IP20, cable length: 0.3 m, number of positions: 8, 10 Gbps, CAT6A, connection method: Pierce connection, Ethernet

Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData cable preassembled
Sensor typeEthernet
Number of positions8
Connection profileRJ45
Shieldedyes
Signaling
Status displayno
Status display presentNo
Electrical properties
Rated voltage (III/3)72 V (DC)
Nominal voltage UN48 V
Nominal current IN0.5 A
Transmission mediumCopper
Transmission speed10 Gbps
Mechanical properties
Mechanical data
Insertion/withdrawal cycles200
Insertion force per signal contact50.00 N
Extraction force per signal contact30 N
Material specifications
Contact materialCuSn
Contact surface materialAu
Contact carrier materialPC
Outer sheath, materialPUR
Dimensions
Dimensional drawinghlondwagln.jpg
Width12.6 mm
Height6.6 mm
Length40.05 mm
Connection data
Connection technology
Connection methodPierce connection
Conductor connection
Connection methodPierce connection
Connector
Connection 1
TypePlug straight RJ45
Shieldedyes
Insertion/withdrawal cycles≥ 750
Degree of protectionIP20
Connection 2
TypePlug straight RJ45
Shieldedyes
Insertion/withdrawal cycles≥ 750
Degree of protectionIP20
Cable/line
Cable length0.30 m
Cable typeEthernet 10 Gbit
Cable structure2x2xAWG26/7, S/FTP
Outer sheath, materialPUR
External sheath, colorwater blue RAL 5021
Conductor structure signal line6.00 mm +0.2 mm -0.1 mm
AWG signal line26
Material wire insulationPE
ShieldingS/FTP
Test voltage, cable1000 V DC (1 minute)
Cable insulation resistance2000 MΩ*km (500 V)
Coupling resistance30.00 mΩ/m (30 MHz)
Smallest bending radius, fixed installation50 mm (under load)
Smallest bending radius, movable installation25 mm (without load)
Halogen-freeaccording to IEC 60754-1
Flame resistanceIEC 60332-1
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
IP20
Ambient temperature (operation)-25 °C ... 60 °C (RJ45 connector)
Standards and regulations
Flame resistanceIEC 60332-1

ETIM for 1413158 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 0.3 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) No
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Rated current In (EF008250) 0.5 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
