View larger
Images are for illustrative purposes only. Please refer to data sheet for details

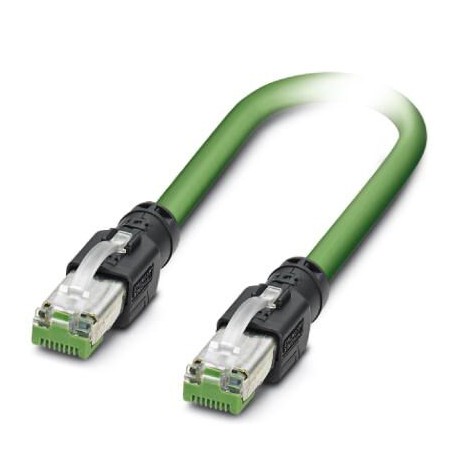

NBC-R4AC/7,5-93B/R4AC 1424816 PHOENIX CONTACT Patch cable NBC-R4AC/7,5-93B/R4AC 1424816
NBC-R4AC/7,5-93B/R4AC
1424816
PHOENIX CONTACT
1 Pcs.
Patch cable - NBC-R4AC/7,5-93B/R4AC - 1424816
Patch cable, protection index: IP20, cable length: 7.5 m, number of poles: 4, 100 MBit/s, CAT5, material: PA 6.6, PROFINET
Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲PROFINET patch cable, shielded, star quad, 22 AWG stranded (7-wire), green, straight RJ45 plug/IP20 to straight RJ45 plug/IP20, length: 7.5 m
Key Commercial Data
| Orderkey | 1424816 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626381152 |
| Custom tariff number | 85444290 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | Other |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 7.5 m |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | No |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Material of contact surface (EF004020) | Other |
| Rated current In (EF008250) | 1 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | Other |
